Introduction
In this guide we will show how to replace the speakers. If you find missing instructions or missing photos, please navigate to the other guides of this product. This guide was made by volunteers and is may not be ultra-complete for beginners.
-
-

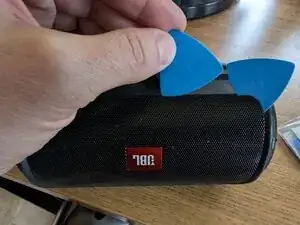

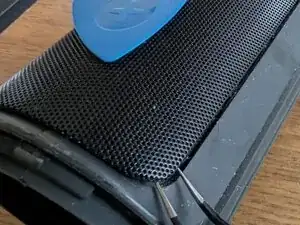

Remove the metal grill: starting from bottom-left corner, use a guitar pick or spudger to lift the metal grill.
-
Unscrew the four screws that hold each speaker in place (8 total).
-
-
-

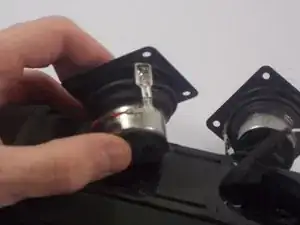

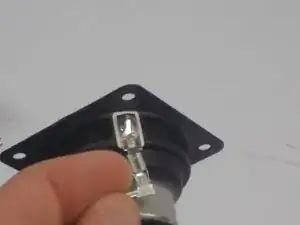

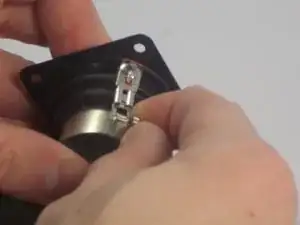

Replace the speakers : simple reinstall in reverse order.
-
To reinstall the metal grille: gently and firmly line it up and press into place. If needed, use the spudging tool to guide the last corners into place.
-
To reassemble your device, follow these instructions in reverse order.
