How to Perform a Battery Cycle Reset

Written By: Alex Diaz-Kokaisl

Comments: 53

Difficulty

Easy

Steps

Time Required

2 - 5 minutes

Introduction

Use this guide to perform a battery cycle reset on your Samsung phone or tablet. You should perform this reset whenever you change the battery for your Samsung device.

Tested Devices (Samsung Remote Test Lab):

Supported S Phones: S20, S20+, S20 Ultra, S21, S21+, S21 Ultra, S21 FE, S22, S22+, S22 Ultra, S23, S23+, S23 Ultra, S23 FE, S24, S24+, S24 Ultra
Supported A Phones: A15, A25, A54
Supported Fold Phones: Z Fold5
Supported Flip Phones: Z Flip5
Supported S Tablets: Tab S7+, Tab S9, Tab S9+, Tab S9 Ultra, Tab S9 FE, Tab S9 FE+
Unsupported S Phones: S20 FE, S24 FE, S25, S25+, S25 Ultra
Unsupported A Phones: A04, A05, A06, A13, A13 5G, A14, A16, A22, A23, A24, A31, A32, A32 5G, A33, A34, A35, A42 5G, A52s, A53, A55 5G, A72, A73, A82 5G
Unsupported Note Phones: Note20, Note20 Ultra
Unsupported Fold Phones: Z Fold1, Fold2, Fold3, Fold4, Fold6
Unsupported Flip Phones: Z Flip1, Flip2, Flip3, Flip4, Flip6
Unsupported Tablets: Tab S7, Tab S7 FE, Tab S8, Tab S8+, Tab S8 Ultra, Tab S10+, Tab S10 Ultra

For more information, refer to the Samsung Self-Repair document.

Note: the device used is a Samsung Galaxy Tab S7+, but the procedure is identical across all Samsung devices.

Note: Samsung account required.

Step 1

Download the Self Repair Assistant app (2.0.12)here.
You may be prompted with a "File might be harmful" warning. If so, select "Download anyway."

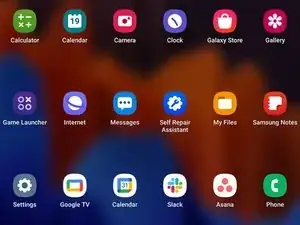

Open the "My Files" app.
Navigate to the "Installation files" tab on the left side of the screen.

The Self Repair Assistant is now working on one ui 6.1

Jayson Chua -

Je trouve mas l'application

Oussama Reddaf -

Make sure to set your phone date to year 2022 before using this app version. If you don't, it will not work and ask you to download the latest version.

Do not use the latest version of this app as it will ask for Samsung-made battery serial number (really Samsung. copying Apple for this is anti-consumer).

Peter Chang - 21/09/24

Step 2

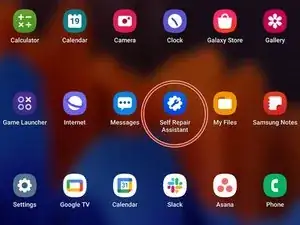

Select the app on the right side of the screen.
If the app doesn't show up on this panel, skip to the next step.
Select "Install" to confirm the app's installation.
Skip the next two steps.

It says model not supported

kayceegovender24 -

Step 3

If your app didn't show up on the "Installation files" tab, follow the next two steps to rename the file.
Navigate to the "Downloads" tab on the left side of the screen.
Long press the download file until an orange checkmark appears to the left of it.
Navigate to the bottom of the screen and select the "More" option.

Step 4

Select the "Rename" option.
Delete the .jar at the end of the app's name.
Your file should now appear in the "Installation files" tab.

Su s20 con one ui 5.1 viene fuori il messaggio di aggiornare l app

_matti_ -

Step 5

Select the Galaxy Cal app.

Bei meinem S20 FE 5G kommt beim Starten der App die Meldung:

This Model is NOT Supported

Gibt es sonst noch eine Möglichkeit?

DasMarki _ -

Says galaxy s20fe is not supported?

Leroy Henkeman -

I want FE support as I have an S20 FE 5G.

Evan Mcgeehan - 12/02/23

It doesn't work on galaxy s20 with one ui 5.1

_matti_ -

On my S9 it installs but the window of the app closes instantly after opening.

Rbn Vn Drn -

Step 6

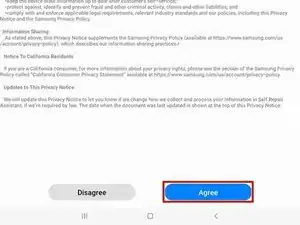

Select "Agree" to accept the Terms and Conditions.

Step 7

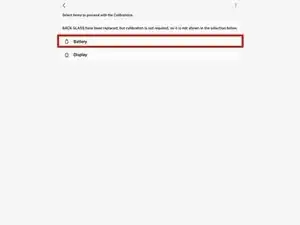

Select the "Battery" icon.

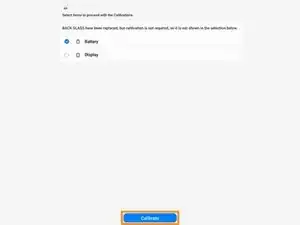

Select "Calibrate" to continue.
If you want to perform a fingerprint sensor calibration instead, follow this guide.

Step 8

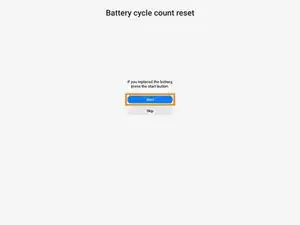

Select the "Start" button.
Select the "Start" button again.

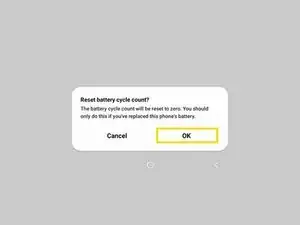

Select "Ok" to finalize the battery cycle reset.
Wait until the battery cycle reset finishes.
You may need to reset your device for battery cycle reset to apply.

It doesn't work on galaxy s20

_matti_ -

42 comments

Dead link to Samsung Self-Repair document.

Rabe -

Thanks for catching that! I fixed the link in the introduction.

Arthur Shi -

I installed the galaxy cal app on an S20 and when opening the app I get a message to try again after getting new version

Pierre-Luc Thibeault -

I have the same. Do you know how to fix this now?

Melanie Herget -

simply change your phone date between 2021 and 2022.

mightnire -

When opening the app it says model not supported .I'm using a galaxy-s20-fe

Leroy Henkeman -

I installed the galaxy cal app on an S20 and when opening the app I get a message to try again after getting new version

Sankt Florian -

me too. cant find in store either

Chad Paul -

Set your phone date between 2021 to 2022

蓝泽希 -

Please update the newest version

kramyeu -

Hello again, when the prompt show there yoy should get new version just simple change the date back in past

kramyeu -

Good catch! I changed it to Sept 30 2022 and then the app started.

Oscar de León -

I installed the galaxy cal app on an S20, Android 13 too and when opening the app I get a message to try again after getting new version.

Tried on 3 devices, same result :(

Holger Dahlke -

Resetting the date was the right clue, thx :)

Holger Dahlke -

I have the same question that the application shows it needs updating before opening it. Version is SM-G9860, Oneui5.1

James Zhao -

note20 ultra show : This model is NOT supported! could you add note20 to this tool?

Fixxx -

I hope to see an increase in compatibility for the Note20 series.

Kaiming Zhang (土豆丝) -

Can you please add support for the fe series devices because I have an s20 fe 5g and need to replace my battery.

Evan Mcgeehan -

Would be nice to have, but not possible. As the Prolog says:

Diese Vorgehensweise funktioniert nur auf dem S20, S21, S22 und TabS7+ Modellen. Sie gilt nicht für Fan Edition (FE) Modelle. Diese Anleitung wird aktualisiert, sobald Samsung weitere Modelle hinzufügt.

"... Not suitable for the Fan Edition (FE) Modells. ..."

BenZ78 -

Can you please add s23 series support for in the future as I have an S23 Ultra. Also for those of you who have the "try again after getting new version" error just change your device's date to Oct. 1st 2022 or earlier.

Evan Mcgeehan -

No need to change the phones date just update the app after installing using the galaxy store.

Chris -

Does it work with a S20+ too?

Daniel -

Hallo,

danke für Euren Tipp.

Ich habe diese Version für mein S22 plus heruntergeladen und installiert. Nach dem Start der App, wollte die App aktualisiert werden. Habe ich gemacht und jetzt will die App eine Seriennummer meines Akkus. Version 2.0.10

Kann ich das irgend wie auslesen lassen?

Mfg

dachs1 -

Is there a compatible version for the Samsung S10E?

Elia Capecci -

Did you try the latest version 2.0.12 from the Samsungparts link in step 1 in the unverified but updated version of this guide?

Evan Mcgeehan -

Hi all. Why doesn't the program support Samsung 20FE? Is there a way to reset the charge counter?

Андрей Александров -

Hallo

Leider sagt die app das ei e Verwendung auf dem s21fe nicht möglich ist. Gibt es dafür Lösungsansätze?

benbaschke -

Use the latest version 2.0.12 in the unverified version of this guide. I tested it on devices in Samsung's Remote Test Lab and it should work for your S21FE.

Verwenden Sie die neueste Version 2.0.12 in der nicht verifizierten Version dieses Handbuchs. Ich habe es auf Geräten im Remote Test Lab von Samsung getestet und es sollte für Ihr S21FE funktionieren.

Evan Mcgeehan -

Change phone date to 2021

jackyang0320 - 04/09/24

when i start the calibration, the apps shows that need a serial or qr of the battery, how can i get it?

juandavidflexia -

at the back of the battery there is QR code or at the front I am not so sure which one to use. there is also serial number beside the QR code at the back

Ray Floyd Cabrera - 01/10/24

Hallo, can i use it for my galaxy S21 5G ?

Johann Gottlieb -

Yes I've tested it on that model in Samsung's Remote Test Lab on their developer website and it works.

Evan Mcgeehan -

Is it for Samsung only?

Aj Mea -

Yes, this tutorial is especially for the Samsung models mentioned in the introduction.

BenZ78 -

it can support a52s ?

Strong demand, expected renewal

I changed the battery and saw that the battery level was 0%, but the battery still had an output of 3.6V.

The output voltage range of lithium batteries is 2.8V~4.2V, and the voltage corresponding to 0% power should be 2.8~3.2V
The battery cycle counter limits the capabilities of my new battery

蔚沐白 - 22/05/25

Unfortunately even the latest version as of writing (2.0.12) doesn't work on the A52s. I installed and launched it on an A52s in Samsung's Remote Test Lab as this is how I tested all the listed devices in this guide and it said the model isn't supported. Indeed that is also correct as to why resetting the cycle count is important when replacing the battery. The phone limits how much of even a brand new battery's capacity is used based on the stored cycle count and calculated health percentage in the devices memory unless it's reset with this tool.

Evan Mcgeehan -

Hi sir

How can i do it for the note 20 ultra please i need a solution

thug Namroud -

Currently even the latest version (2.0.12) doesn't support the Note 20 or Note 20 Ultra.

Evan Mcgeehan -

is it support note10+?

張奕斯 -

I'm not sure as it's not listed on Samsung's Remote Test Lab for me to test. You can try the latest version (2.0.12) on your Note10+ to see if it's supported.

Evan Mcgeehan -

My new battery was installed at a repair shop but they did not have software to recalibrate nor did they provide me with serial number. I was told to just allow battery to drain to 0%, then recharge to 85% a few times and it will recalibrate after a few cycled. NOT TRUE. How can I recalibrate new battery in my S20+ 5G without Serial Number of new battery? Also the name of APK file in link above differs from documenation ... file starts with GPT. but documenation shows file name should have been SRA... IS THIS GPT FILE SAFE? I have very low tech skills -- just a retired grandma who wants the battery to hold a charge so I can keep my phone. Thx for any help!

Jane Hylton -
