HP Omen 15-ax200ne Hard Drive Replacement

Written By: Khaled Hamdan
  • Comments: 1
HP Omen 15-ax200ne Hard Drive Replacement

Difficulty

Moderate

Steps

11

Time Required

40 - 50 minutes

Introduction

This guide will outline the process to replace the hard drive for the HP Omen 15, more specifically in the model ax200ne. A user may require a hard drive replacement after years of wear and tear, or even for an upgrade to their storage. Whatever the reason, this guide will show you exactly how to do so. This is a moderate level repair to do if you are new to home-servicing your devices, and very easy if you are familiar with home repairs.

  1. vxOOeWYrRIxtCSOu

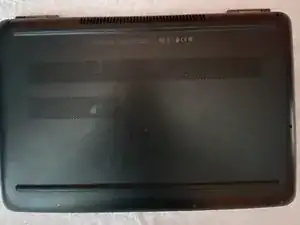

    • Fully power off the laptop.

    • If you are unsure that your laptop is in hibernation mode, turn the computer off from the start menu.

    • Unplug charging cable and any external devices.

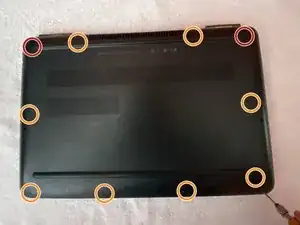

  2. Qd3piMFlQ14mfJXG

    • Position the laptop upside down on a flat and clean surface.

    • Make sure to stay away from static discharge or wear an anti-static wrist strap.

    • Remove the two Phillips M2x5.0 screws located at the top left and top right of the laptop (circled in red).

    • Remove the eight M2.5x6.0 (circled in orange).

  3. aswRKE6sdyP3e2Dk
    aswRKE6sdyP3e2Dk
    ANDNGnidNhgfUmWJ

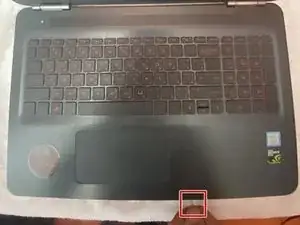

    • Keep in mind, there are three internal clips by the battery area.

    • Slide the nylon opening tool around the edge of the base enclosure, releasing the three clips by the battery area.

    • Continue to slide the nylon opening tool around the edges of the base enclosure, doing so while loosen the cover.

  4. MZiIbJlJA1IkXyBo
    MZiIbJlJA1IkXyBo
    aKvKrMVdaK6LRVuf

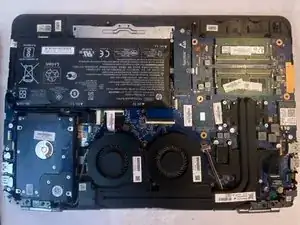

    • After successfully loosening the base enclosure, and removing it. You will be left with an exposed motherboard.

  5. XAOO21jOrZD2JYce
    XAOO21jOrZD2JYce
    nQLxQmLCgbhFZH3u

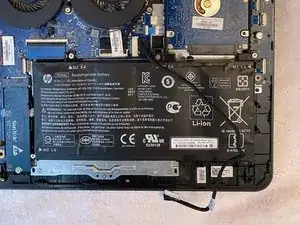

    CCdpQIBHY26DIqkm

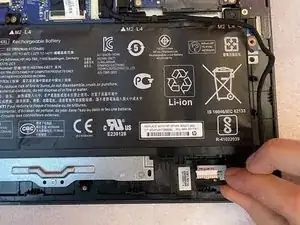

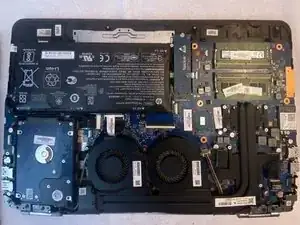

    • Unplug the battery from the motherboard.

    • Release the battery cable from the routing channel to reveal the screws beneath.

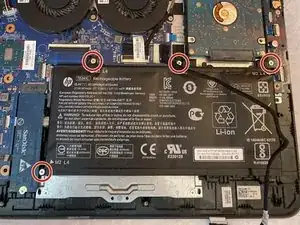

  6. aWiT6C4UMVQwtjZN
    aWiT6C4UMVQwtjZN

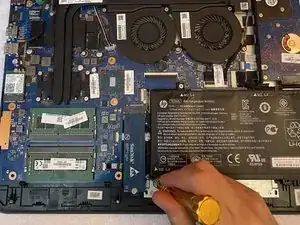

    Kqp3YSpPKJ2M6uRZ

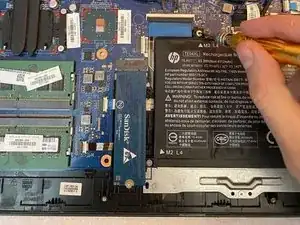

    DVPAbLMhXwmIU4Fy

    • Remove the four 2x5 screws using the Phillips screwdriver.

  7. Slide the battery out of its space to remove it from the computer.

    • Slide the battery out of its space to remove it from the computer.

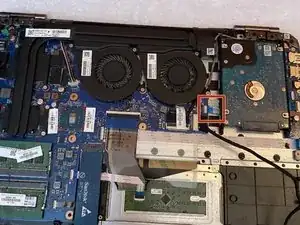

  8. jIO5dCwVdVQfIrHA
    jIO5dCwVdVQfIrHA
    PTpL1YsAEFsymNYL
    ATiHGEAYbtUcA5SG

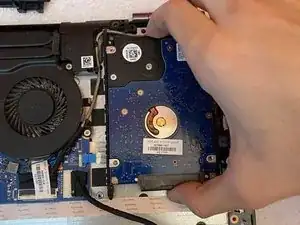

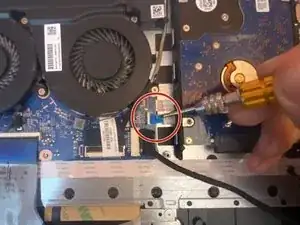

    • Disconnect the clip attaching the hard drive cable to the motherboard.

    • Be careful when disconnecting this clip, as it is very delicate.

    • Use your fingers or a spudger to disconnect the cable. Do not use a screwdriver for the job. It could cause damage.

    • Slide the hard drive out horizontally.

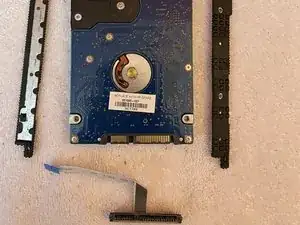

  9. ZXPb5awsTDSLlBIg

    • Disassemble the hard drive by removing the connector and the side brackets.

  10. OOIucUSOrGQ1DtBS
    OOIucUSOrGQ1DtBS
    OLJH2pSAjUrfkxYm

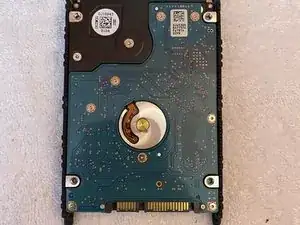

    • Reattach the side brackets and the hard drive connector.

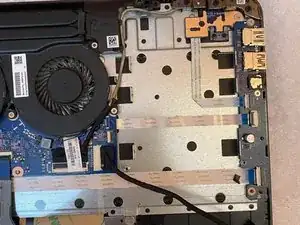

  11. 2oUUp1jYfDCrQECL
    2oUUp1jYfDCrQECL
    GZqBKljHUiHSYO3u

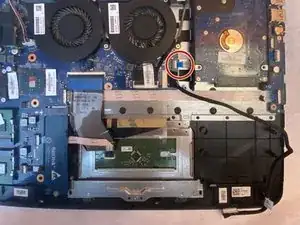

    • Slide the hard drive back to the original spot.

    • Reclip the hard drive to the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
