HP EliteBook 845 G8 Memory Module Replacement

Written By: Carsten Frauenheim

Difficulty

Moderate

Steps

Time Required

20 - 30 minutes

Introduction

Use this guide to replace or upgrade the memory modules (aka RAM) in your HP EliteBook 845 G8 laptop.

This laptop has two slots that support DDR4 SO‑DIMM memory modules.

Still under warranty? Contact HP to learn your warranty status, receive a repair under warranty if eligible, or for further warranty information.

Before starting your repair, allow your laptop's battery to drain below 25%—a charged lithium-ion battery is a potential safety hazard if accidentally damaged.
Save your work, fully shut down your laptop, and unplug all cables.

Despite the standards, Phillips screwdrivers can vary in size and shape—two drivers labeled as the same size may fit differently in the same screw. Use the size that fits the most snug into the screw head to avoid stripping it.
Use a Phillips screwdriver to fully loosen (but not remove) the five captive screws securing the bottom cover.

Position your laptop so the rear edge (with the screen hinge) is closest to you.
Insert the flat end of a spudger between the rear edge of the bottom cover and the frame, near the middle screw and ELITEBOOK text.
If you're having trouble inserting your spudger, make sure the screw is fully loosened. If necessary, use your fingers to gently pull the screw up.
Use your spudger to pry up the cover to release the clip securing it.
Leave the spudger inserted under the bottom cover for the next step.

Slide your spudger along the rear edge toward one of the corners to release the rear edge clips.
Rotate your spudger around the corner and up the edge to release the clips securing the short edge of the cover.

Reinsert the flat end of a spudger near the ELITEBOOK text.
Repeat the previous step for the other side of the cover to release the remaining clips.

Lift and remove the bottom cover.
The cover should lift away easily. If you feel resistance, use the flat end of a spudger to release any remaining clips, and check that all screws are fully loosened.
During reassembly, slide the clips along the front edge of the cover (opposite the hinge) into their slots on the frame, then lay the cover down. Press firmly around the perimeter to engage all of the clips.

Position your laptop so the front edge (opposite the screen hinges) is closest to you.
Use the point of a spudger or your fingernail to push on alternating sides of the battery's sliding connector to walk it completely out of its socket.

Depending on your laptop configuration, your device may have a metal shield or no cover at all.
Use tweezers or your fingers to peel up the bottom edge of the SSD cover.
If the cover is difficult to peel up, use an iOpener or hair dryer to lightly heat it. Be careful not to overheat the tape or the surrounding components.
Fold the SSD cover over, onto the memory module cover.

Depending on your laptop configuration, your device may have a metal shield or no cover at all.
Grip the SSD and memory module covers together and peel them off.
If the cover is difficult to remove, use an iOpener or hair dryer to lightly heat it. Be careful not to overheat the tape or the surrounding components.

Your laptop has two memory slots, each with a pair of metal arms that secure a memory module. This laptop supports DDR4 SODIMM modules.

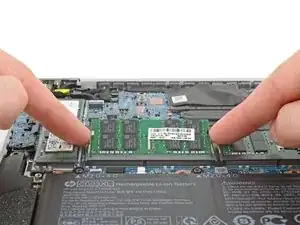

Simultaneously push out the metal arms on each side of the memory module until they disengage and the module pops up at a slight angle.

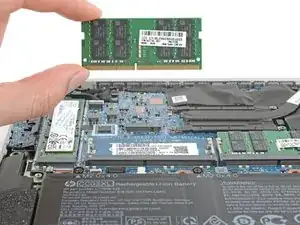

Pull the module out of its socket to remove it.
Use the same process to remove the other memory module.

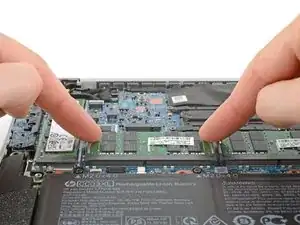

To install a memory module, insert it into its socket at a slight downward angle, then push down firmly until both metal arms lock it in place.
If only installing one module, insert it into the slot labeled DIMM 1.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler. Depending on your region, used HP devices and parts can be returned for reuse or recycling through the HP Planet Partners program.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
