Introduction
Use this guide to replace the speakers in your HP EliteBook 845 G7 laptop.
The left and right speakers are connected by a cable—in order to replace one speaker, you must replace both. You may need to replace the speakers if they're making distorted sound, crackling noises, or no sound at all.
Still under warranty? Contact HP to learn your warranty status, receive a repair under warranty if eligible, or for further warranty information.
-
-
Use a Phillips screwdriver to fully loosen (but not remove) the five captive screws securing the bottom cover.
-
-
-
Position your laptop so the rear edge (with the screen hinge) is closest to you.
-
Insert the flat end of a spudger between the rear edge of the bottom cover and the frame, near the middle screw and ELITEBOOK text.
-
Use your spudger to pry up the cover to release the clip securing it.
-
Leave the spudger inserted under the bottom cover for the next step.
-
-
-
Slide your spudger along the rear edge toward one of the corners to release the rear edge clips.
-
Rotate your spudger around the corner and up the edge to release the clips securing the short edge of the cover.
-
-
-
Reinsert the flat end of a spudger near the ELITEBOOK text.
-
Repeat the previous step for the other side of the cover to release the remaining clips.
-
-
-
Position your laptop so the front edge (opposite the screen hinges) is closest to you.
-

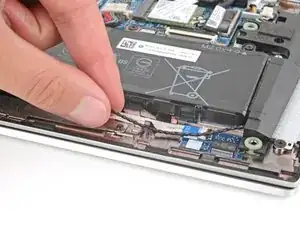

Use the point of a spudger or your fingernail to push on alternating sides of the battery's sliding connector to walk it completely out of its socket.
-
-
-

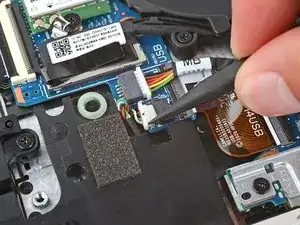

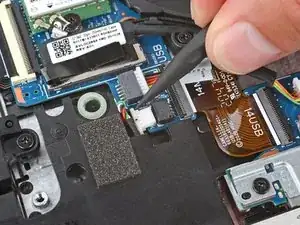

Use the point of a spudger to push on alternating sides of the speakers' sliding connector to walk it completely out of its socket.
-
-
-

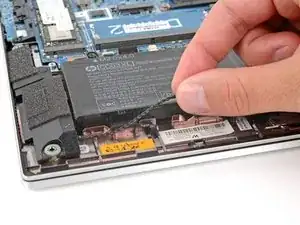

Use your fingers or a spudger to lift the entire speaker cable out of its clips on the bottom edge.
-
-
-

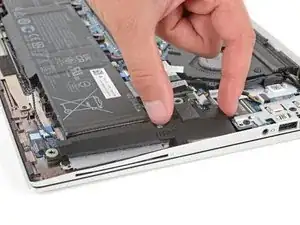

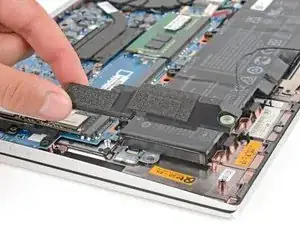

Lift the speakers straight up and off their posts to remove them.
-
Make sure both speakers have grommets. If they don't, transfer the grommets from the original speakers to the replacements.
-

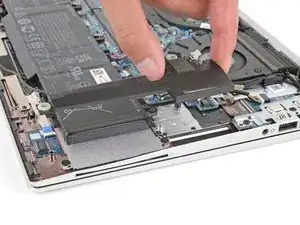

Align the grommets over their screw posts and press down gently to secure the speakers in place.
-
Compare your new replacement part to the original part—you may need to transfer remaining components or remove adhesive backings from the new part before you install it.
To reassemble your device, follow these instructions in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler. Depending on your region, used HP devices and parts can be returned for reuse or recycling through the HP Planet Partners program.
Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
