HP EliteBook 840 G6 Disassembly

Written By: Eric M.
  • Comments: 5
HP EliteBook 840 G6 Disassembly

Difficulty

Moderate

Steps

5

Time Required

15 minutes

Introduction

  1. NK6CHUkgOxVQoRKM

    • Identify the screws.

    Pour voir au changer la batterie comment faire ?

    Brahim Jelti -

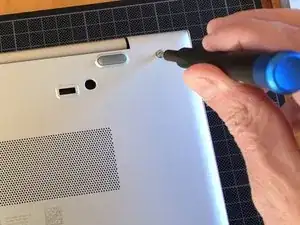

  2. gijTRACDCEDi4uIy
    gijTRACDCEDi4uIy

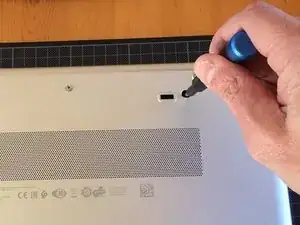

    3TKqaUktWBpvKQdS

    • Unscrew the screws.

    • Screws are attached to the back panel.

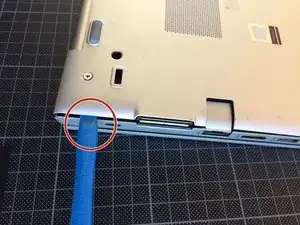

  3. LJpmwiRbrvGec1Du
    LJpmwiRbrvGec1Du

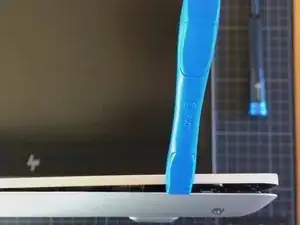

    5MsZ2HXitsI6WndG
    Kq6DntKQZKsTVAKJ

    • Use your fingernail or the iFixit Opening Tool.

    • Start on the far side when prying apart.

    • Open the computer.

    • The display should face the table.

    • Separate gently the back cover from the front panel (keyboard panel).

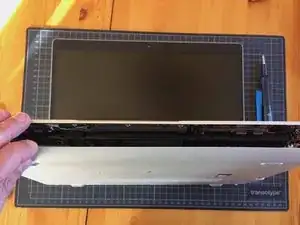

  4. 6lMUIdH3SXvJHZ6H
    6lMUIdH3SXvJHZ6H
    mmJMp5QCwFL1HCa1

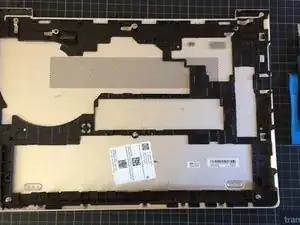

    YOCihZ1vholrElVV

    • Open each side gently (keyboard panel is facing up, the back cover is facing down).

    • Store the back cover.

  5. F5aKtJgvnXYYmFbM

    • You now have access to the mainboard.

    Note that the battery is attached using different screws and you need a corresponding screw driver

    Fritz Rothacher -

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Eric M.

Member since: 27/12/21

491 Reputation

3 comments

Are the 6 silver-colored screws holding the back cover on all the same length?

David Cary -

All of the screws are captive, meaning they don't come out of their holes. They are not all the same length, however, but since you can't lose them you don't need to worry about getting them back into the same holes.

Tyler Regas -

The central screw has a different size.

Eric M. -
