HP EliteBook 840 Aero G8 Bottom Cover Replacement

Written By: Spencer Day
  • Comments: 0
HP EliteBook 840 Aero G8 Bottom Cover Replacement

Difficulty

Moderate

Steps

6

Time Required

10 - 15 minutes

Introduction

Use this guide to replace a cracked, broken, or damaged bottom cover on your HP EliteBook 840 Aero G8 laptop.

  1. XGLVrJTkTM2D4uWB
    XGLVrJTkTM2D4uWB
    HwIbLgYQKJXP2sZY

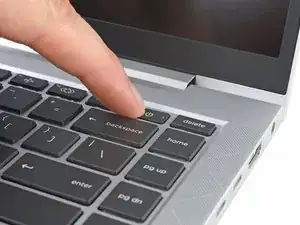

    • Before starting your repair, save your work, fully shut down your laptop, and unplug all cables.

  2. hrfBs4HVDBEwVNtf
    hrfBs4HVDBEwVNtf
    RSfhtT2LVUNsB3mY

    • Despite the standards, Phillips screwdrivers can vary in size and shape—two drivers labeled as the same size may fit differently in the same screw. Use the size that fits the most snug into the screw head to avoid stripping it.

    • Use a Phillips screwdriver to fully loosen (but not remove) the five captive screws securing the bottom cover.

  3. D5sZo1kqYHjf2AWA
    D5sZo1kqYHjf2AWA
    ExwrCQpwuKY2ihLS
    ubDE62wtAsdo5Fkd

    • Position your laptop so the rear edge (with the screen hinge) is closest to you.

    • Insert the flat end of a spudger between the rear edge of the bottom cover and the frame, near the middle screw and ELITEBOOK text.

    • If you're having trouble inserting your spudger, make sure the screw is fully loosened. If necessary, use your fingers to gently pull the screw up.

    • Use your spudger to pry up the cover to release the clip securing it.

    • Leave the spudger inserted under the bottom cover for the next step.

  4. DoEXCJAJCQ5FMQOK
    DoEXCJAJCQ5FMQOK
    KXMfNsuD51COLuqC
    C3oj1cfTFGluKCZ5

    • Slide your spudger along the rear edge toward one of the corners to release the rear edge clips.

    • Rotate your spudger around the corner and up the edge to release the clips securing the short edge of the cover.

  5. b42iAcquGMpVPDQX
    b42iAcquGMpVPDQX
    rACDKrVwnjuUYenU
    HkkRBICYcpGZUPDC

    • Reinsert the flat end of a spudger near the ELITEBOOK text.

    • Repeat the previous step for the other side of the cover to release the remaining clips.

  6. sv1LLWPHSofRTsuG
    sv1LLWPHSofRTsuG
    C4Rxj3EqQUyh3uYo
    qqQwAIZgGfJnNoQ1

    • Lift and remove the bottom cover.

    • The cover should lift away easily. If you feel resistance, use the flat end of a spudger to release any remaining clips, and check that all screws are fully loosened.

    • During reassembly, slide the clips along the front edge of the cover (opposite the hinge) into their slots on the frame, then lay the cover down. Press firmly around the perimeter to engage all of the clips.

Conclusion

To reassemble your device, follow these instructions in reverse order.
