HP EliteBook 840 Aero G8 Battery Replacement (No Revivekit)

Written By: Spencer Day
  • Comments: 0
HP EliteBook 840 Aero G8 Battery Replacement (No Revivekit)

Difficulty

Moderate

Steps

10

Time Required

15 - 20 minutes

Introduction

Use this guide to replace a dead or worn‑out battery in your HP EliteBook 840 Aero G8 laptop.

Don't continue to use a damaged battery, as doing so is a potential safety hazard. If in doubt, replace it with a new battery.

When handling batteries, don’t use sharp or metal tools, and don’t bend them or use excessive force. If your battery is swollen, take appropriate precautions.

If your battery is swollen, take appropriate precautions.

Still under warranty? Contact HP to learn your warranty status, receive a repair under warranty if eligible, or for further warranty information.

  1. puhVjJCRCYqHx4Lv
    puhVjJCRCYqHx4Lv
    JynbORmcorgOaWP4

    • Before starting your repair, allow your laptop's battery to drain below 25%—a charged lithium-ion battery is a potential safety hazard if accidentally damaged.

    • Save your work, fully shut down your laptop, and unplug all cables.

  2. hrfBs4HVDBEwVNtf
    hrfBs4HVDBEwVNtf
    RSfhtT2LVUNsB3mY

    • Despite the standards, Phillips screwdrivers can vary in size and shape—two drivers labeled as the same size may fit differently in the same screw. Use the size that fits the most snug into the screw head to avoid stripping it.

    • Use a Phillips screwdriver to fully loosen (but not remove) the five captive screws securing the bottom cover.

  3. D5sZo1kqYHjf2AWA
    D5sZo1kqYHjf2AWA
    ExwrCQpwuKY2ihLS
    ubDE62wtAsdo5Fkd

    • Position your laptop so the rear edge (with the screen hinge) is closest to you.

    • Insert the flat end of a spudger between the rear edge of the bottom cover and the frame, near the middle screw and ELITEBOOK text.

    • If you're having trouble inserting your spudger, make sure the screw is fully loosened. If necessary, use your fingers to gently pull the screw up.

    • Use your spudger to pry up the cover to release the clip securing it.

    • Leave the spudger inserted under the bottom cover for the next step.

  4. DoEXCJAJCQ5FMQOK
    DoEXCJAJCQ5FMQOK
    KXMfNsuD51COLuqC
    C3oj1cfTFGluKCZ5

    • Slide your spudger along the rear edge toward one of the corners to release the rear edge clips.

    • Rotate your spudger around the corner and up the edge to release the clips securing the short edge of the cover.

  5. b42iAcquGMpVPDQX
    b42iAcquGMpVPDQX
    rACDKrVwnjuUYenU
    HkkRBICYcpGZUPDC

    • Reinsert the flat end of a spudger near the ELITEBOOK text.

    • Repeat the previous step for the other side of the cover to release the remaining clips.

  6. sv1LLWPHSofRTsuG
    sv1LLWPHSofRTsuG
    C4Rxj3EqQUyh3uYo
    qqQwAIZgGfJnNoQ1

    • Lift and remove the bottom cover.

    • The cover should lift away easily. If you feel resistance, use the flat end of a spudger to release any remaining clips, and check that all screws are fully loosened.

    • During reassembly, slide the clips along the front edge of the cover (opposite the hinge) into their slots on the frame, then lay the cover down. Press firmly around the perimeter to engage all of the clips.

  7. esf4lYtfDXyx6B6t
    esf4lYtfDXyx6B6t
    2CurCjoLrjOEs4aJ
    v1JAAc2Kp1TKllZX

    • Position your laptop so the front edge (opposite the screen hinges) is closest to you.

    • Use the point of a spudger or your fingernail to push on alternating sides of the battery's sliding connector to walk it completely out of its socket.

  8. ClDV22TgST1LbA16
    ClDV22TgST1LbA16
    PAJrmfJGjS4ViUNy
    H2YNAgZBFGxRqQyL

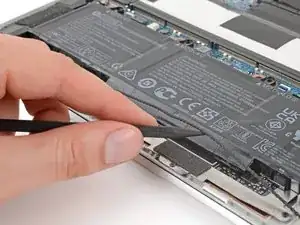

    • Be careful not to bend, crease, deform, poke, or puncture the battery with your tool—a damaged battery is a potential fire hazard.

    • Use a spudger or your fingers to lift the speaker cable out of its clips on the bottom edge of the battery.

  9. Qw6TXoIicSAMvg3V
    Qw6TXoIicSAMvg3V
    2GTLUIN1WpZpiLAW

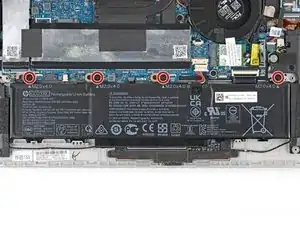

    • Use a Phillips screwdriver to remove the four 4.5 mm‑long screws securing the battery.

  10. WAAYClVZ2xPBDFIk
    WAAYClVZ2xPBDFIk
    fjF3ejk1wsw6QQWP
    RUNKv2w6cfoKP4Q6

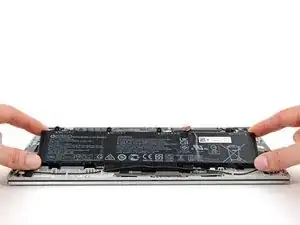

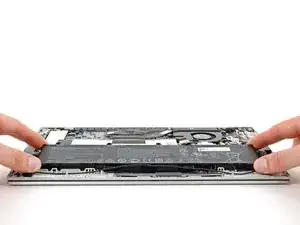

    • Lift the top edge of that battery and slide the tabs on the bottom edge out of their slots.

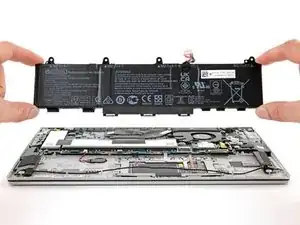

    • Remove the battery.

    • Never reuse a deformed or damaged battery—it's a fire hazard. Replace it with a new battery.

Conclusion

Compare your new replacement part to the original part—you may need to transfer remaining components or remove adhesive backings from the new part before you install it.

To reassemble your device, follow these instructions in reverse order.

For optimal performance, calibrate your newly installed battery after completing this guide.

Take your e-waste to an R2 or e-Stewards certified recycler. Depending on your region, used HP devices and parts can be returned for reuse or recycling through the HP Planet Partners program.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
