HP Chromebook 15a-nb0013dx Speakers Replacement

Written By: Sahid
  • Comments: 0
HP Chromebook 15a-nb0013dx Speakers Replacement

Difficulty

Easy

Steps

7

Time Required

5 minutes

Introduction

If you are experiencing distorted audio or any issue with your speakers, use this guide to replace your HP Chromebook 15a-nb001dx's speakers.

The speakers emit sound from the laptop, and damage to them could distort or disable audio. If any audio is noticed to be distorted, then the problem may be present with the speakers themselves.

When replacing the speakers, make sure the device is powered off.

  1. aPrPUuaLUSnd2fVH
    aPrPUuaLUSnd2fVH
    MdnpfsJJpxmLfneY

    • For your safety, unplug all peripheries, discharge the battery below 25%, and power down your device before beginning disassembly.

    • Lay the device down so the lower case is facing up.

  2. h23XgMhsGBoZChwM
    h23XgMhsGBoZChwM
    mpkBW6JBpce5ySww
    45ydgLME6DvnYkEq

    • Use a Phillips screwdriver to remove four 6.6 mm screws that secure the lower case.

  3. h5EqGGIaEmOZrR2p
    h5EqGGIaEmOZrR2p
    YJfKlgYQOXodTNBZ
    yBdZ35cshFLFg3bh

    • Insert an opening tool into the seam between the lower case and the chassis, near the hinge.

    • Pry around the entire perimeter of the lower case until it fully releases.

    • Remove the lower case.

  4. pBaSN6VEgK4LmJLE
    pBaSN6VEgK4LmJLE
    fERWydBlLsHGecPQ
    TWwrxSLRUlPgLwmD

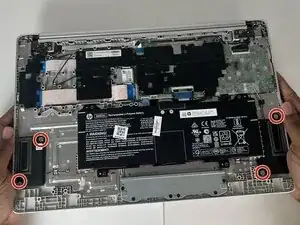

    • Use a Phillips screwdriver to remove four 3.1 mm screws that secure the right and left speakers.

  5. PkjZDp3Q2k1dYWnO
    PkjZDp3Q2k1dYWnO
    dBRQoSt1jfmPoAfn
    PLkhMsYcceehfHWX

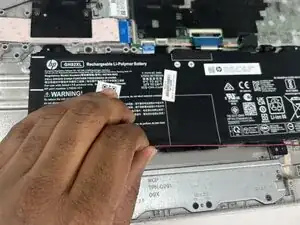

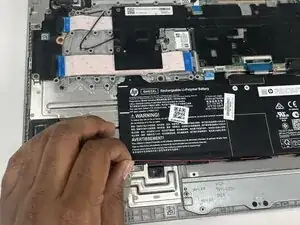

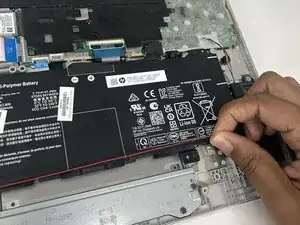

    • Unseat the speaker wires from the retaining hooks on the lower edge of the battery.

  6. LV2ELjoFrtbTuT4f
    LV2ELjoFrtbTuT4f
    sLVQD2WVn4VxeHjN
    oKWFjIqb6VJ2A1rG

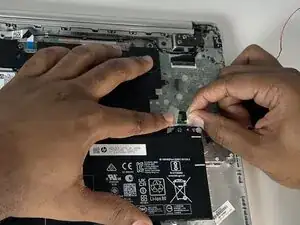

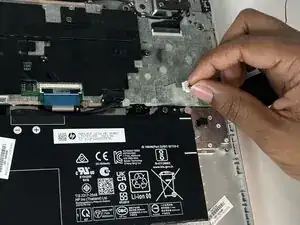

    • Lift back the translucent tape over the speaker connector.

    • Grasp the white speaker connector and pull it directly out of its motherboard socket.

    • Connector is fragile.

  7. qIvBXXIo5NomvnG6
    qIvBXXIo5NomvnG6
    iOfcINVj4eoRv5xb
    bSemOvSKB34wTfPb

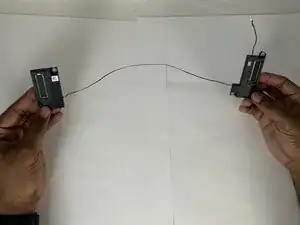

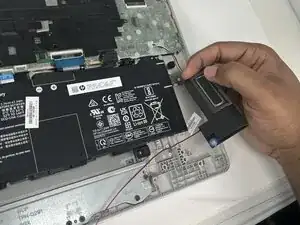

    • Grab the left and right speakers.

    • Lift the speakers up and out of the chassis.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting or ask our Answers community for help.
