Introduction
Use this guide to replace a faulty fan in a HP Chromebook 14-SMB.
-
-
Lay the laptop down with the lower case facing up.
-
Remove eleven screws using a Phillips screwdriver.
-
Remove the two rubber stoppers, then remove the two Phillips screws.
-
-
-
Flip the laptop over and open the lid.
-
Insert an opening pick into the seam between the keyboard and chassis.
-
Slide the opening pick a few centimeters along the seam to begin to release the clips.
-
Once there's enough space in the seam, insert an opening tool into the seam.
-
Pry around the entire perimeter of the keyboard until it fully releases.
-
-
-
Lift the keyboard perpendicular to the laptop.
-
Flip up each of the the two black ZIF locking flaps that secure the keyboard and trackpad ribbon cables to their motherboard sockets.
-
Disconnect the keyboard and trackpad ribbon cables.
-
Remove the keyboard.
-
-
-

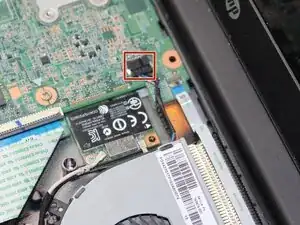

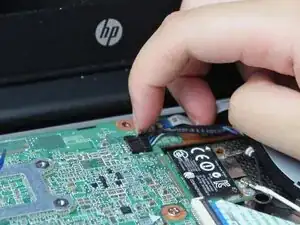

Use your fingernail or the flat end of a spudger to gently disconnect the battery connector from its motherboard connector.
-
-
-

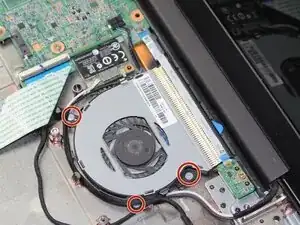

Remove three Phillips screws that secure the fan.
-
Dislodge the cables around the fan from their retaining hooks.
-
-
-

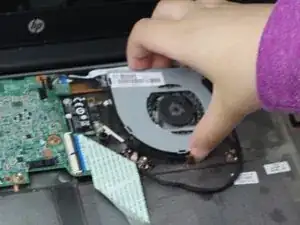

Use your fingernail or the flat end of a spudger to disconnect the fan connector from its motherboard socket.
-
To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
