HP 14-dq5043cl Lower Case Replacement

Written By: Connor
  • Comments: 0
HP 14-dq5043cl Lower Case Replacement

Difficulty

Easy

Steps

3

Time Required

2 minutes

Introduction

Use this guide to replace the lower case on a HP 14-dq5043cl.

  1. YshBGVpMZlYJr6iH
    YshBGVpMZlYJr6iH
    A2wr4n3CuTCdScdG

    • For your safety, unplug all peripheries, discharge the battery below 25%, and power down your device before beginning disassembly.

    • Remove the two rubber feet on the lower case.

    • If you intend to reuse the rubber feet: Use a hairdryer or iOpener to lightly heat the feet to loosen the adhesive that secures them prior to removal. Take care not to stretch out the rubber.

  2. DPYHWHEByGrQmKor

    • Remove the six M2XL6 Phillips screws that secure the lower case.

  3. wJOsN2hAYLtOqXCo
    wJOsN2hAYLtOqXCo
    tXxJuK6of6gAn3BD
    NCcPaIRCERvbarwV

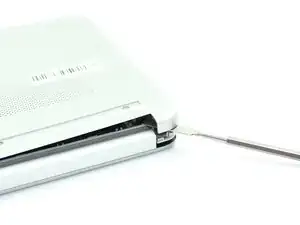

    • Insert a nylon spudger into the seam between the lower case and chassis.

    • Pry around the entire perimeter until the lower case fully releases.

    • Remove the lower case.

Conclusion

To reassemble your device, follow the above steps in reverse order.
