HAY Sowden Toaster – won't turn off

Written By: Andreas Reheis
  • Comments: 9
HAY Sowden Toaster – won't turn off

Difficulty

Moderate

Steps

3

Time Required

45 minutes

Introduction

The toaster no longer switches off. Normally it would take at least 80 seconds and up to 300 seconds.

A capacitor needs to be replaced.

  1. FB1cUvsFnUObrmdv
    FB1cUvsFnUObrmdv
    OhKAbXvPRml4JLEv
    SSKVUQbee6D5UhEQ

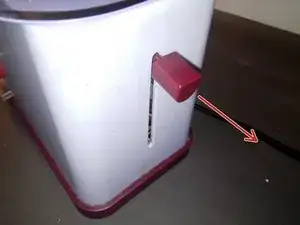

    • Carefully pull the handle in the direction of the arrow.

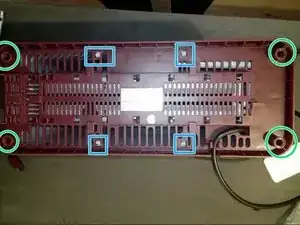

    • Unscrew the 4 screws (triangular).

    • Bend away the 4 clips.

  2. gx2RunV3gBRXRxFY
    gx2RunV3gBRXRxFY
    Ufv6JNMUACELuQFj

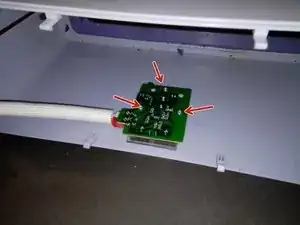

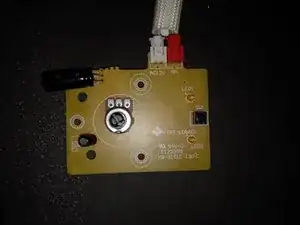

    • Unscrew the circuit board

    • and disconnect the magnet and power supply.

  3. ElnMHBnYNxYW2sfU
    ElnMHBnYNxYW2sfU
    QXPRDX1HhgKcw4S2
    KApTs24h45hnACMs

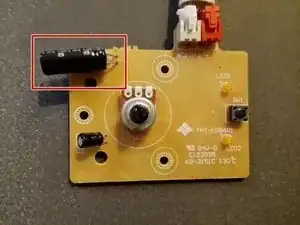

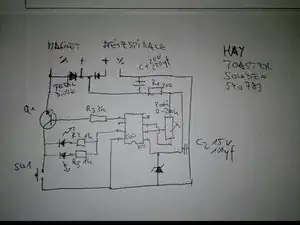

    • Replace capacitor C1 25 V, 220 µF.

    Que número es el ic

    Fernando Dos reis -

    Que número es el ic1

    Fernando Dos reis -

    I dont know. It was not my toaster and i have no better pictures. Are you sure that the ic is broken? What´s your problem with your toaster?

    https://dertoaster.org/toasterreparatur....

    Perhaps it is the 8a2511, but I am not sure. Please check the connetcions first. You can get this ic from a lot of toasters with 3 buttons. Look for an broken toaster with 3 buttons at the e-waste.

    Andreas Reheis -

    I'm sure it's short circuited but the IC has the serials erased.

    Fernando Dos reis -

Conclusion

Follow the steps in reverse order to reassemble your device.

Author

Andreas Reheis

Member since: 19/03/17

2732 Reputation

5 comments

Thanks for this information! I have the same toaster and need to replace the diodes listed at D1. Can you advise what values are required?

Angus -

Hi Angus,

it is an 1N4007 Diode. But I think that de IC is also broken when the diode ist broken. The AC could destroy the IC.

Look at this datasheed and the typical electrical use in a toaster. https://www.digikey.ca/en/htmldatasheets...

good luck and give me a feedback. www.dertoaster.org

Andreas Reheis -

Danke Andreas!

Angus -

Hi Andreas: I replaced the 1N4007 diode and the toaster worked for about 5 seconds before the capacitor blew! Any idea what's up?

Angus -

Hi Angus, okay, just an idea!

The heatingwire is shortet > the voltage on the board is to high > First check the resistenc of the heatingwire an calculate the watt. Compare it with value of the producer writen on the toaster. Then check the AC 12V on the board. Be careful!!!

Perhaps you can go to an Repair-Cafe in your town.

Andreas Reheis -
