Google Pixel 9a Wide Camera Installation

Written By: Spencer Day

Difficulty

Moderate

Steps

Time Required

No estimate

Introduction

This guide shows how to install the wide camera in your Google Pixel 9a smartphone.

Leave any lens caps or liners on the camera for now—they'll protect the lens during reassembly. You'll remove them before installing the back cover.

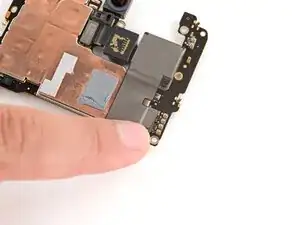

Put the wide camera into place on the logic board, being careful not to smudge the lens.

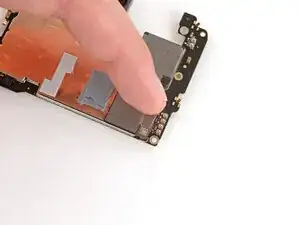

Align the press connector over its socket and press down with your fingertip—first on one of the short sides, then the other—until it clicks into place.
