Google Pixel 9a Inner Housing Adhesive Application (Rear Cover)

Written By: Spencer Day
  • Comments: 0
Google Pixel 9a Inner Housing Adhesive Application (Rear Cover)

Difficulty

Moderate

Steps

3

Time Required

No estimate

Introduction

This guide shows how to apply the inner housing adhesive in your Google Pixel 9a smartphone. This guide is only for the rear cover repair.

  1. lSS25MVfF5jPsYTy
    lSS25MVfF5jPsYTy
    YxQZkxLhLZRdBW5g
    YFctOCZRgmsEnyEF

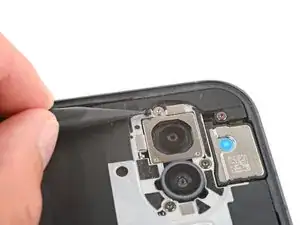

    • Be very careful not to smudge the rear cameras. If you accidentally do, use a clean cloth to wipe them.

    • Use a spudger to scrape up and remove the six small pieces of adhesive around the rear cameras.

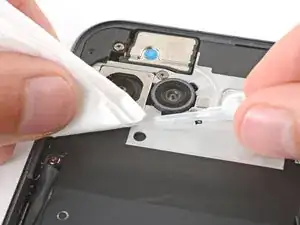

    • Use high‑concentration (>90%) isopropyl alcohol and a lint‑free cloth (or coffee filter) to clean up and remove any residue from the adhesives you just removed.

  2. S4PSDtoANtcr2AVg
    S4PSDtoANtcr2AVg
    DjOlGUUr2rVAJegK
    1Vv1rHYLfSIJSLld

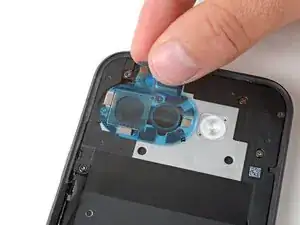

    • Remove the larger, clear liner from the inner housing adhesive and put it in place.

    • Use the cutouts for the small silver pads to help align the adhesive.

    • Hold the adhesive in place with your fingers and use the flat end of a spudger to firmly push down on each piece of adhesive, securing them in place. The rear cameras can make it tricky to secure the adhesive, so take your time and make sure they're firmly secured.

    • Slowly remove the colored liner using the pull tab on the top edge.

    • If the adhesive starts to pull up with the liner, lay it back in place and use your spudger to secure it again.

  3. s25gYxNTjYpkyKIX
    s25gYxNTjYpkyKIX
    PrYCJ1GJ5pyDQXBT
    fKQNOIkoEAAfpHYM

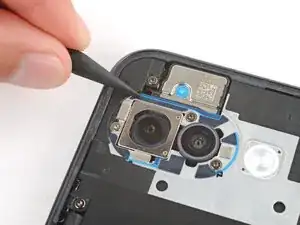

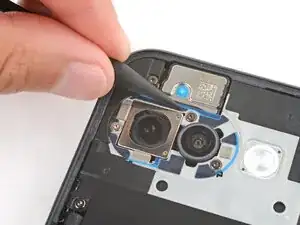

    • Use a spudger to firmly press down on each of the six pieces of inner housing adhesive to secure them.

    • These pieces of adhesive can easily be pulled up when removing the final liners, so make sure they're firmly in place.
