Introduction
This guide is for the Euhomy IM-06D icemaker. This guides purpose is to replace the power supply cable. This part provides the power for the icemaker. Symptoms that mean this part may need to be replaced are the device not turning on or not staying on for long periods of time. Please make sure to unplug the device before starting all guides.
-
-

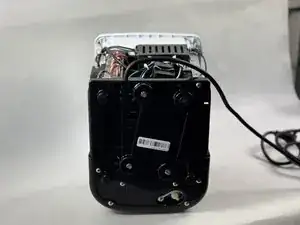

Rotate the device so that the screws on the bottom are visible.
-
Remove the two 15 mm Phillips screws.
-
Remove the two 10 mm Phillips screws.
-
-
-
Snip the zip tie holding the wires together.
-
Unplug the wire from the board.
-

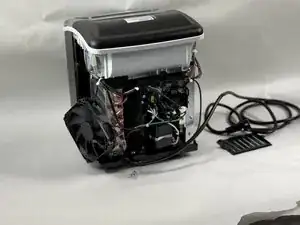

Remove the fan from the device.
-
-
-

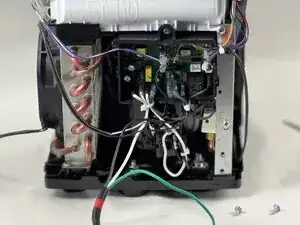

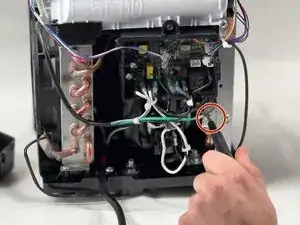

Follow the green ground wire and remove the 15 mm screw securing it with a Phillips screwdriver.
-
-
-

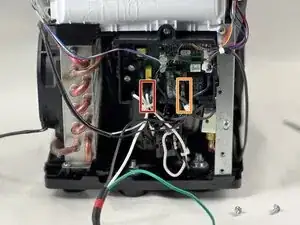

Follow the white wire and unplug it from the motherboard.
-
Follow the black wire and disconnect it from the motherboard.
-
Remove the power supply cable.
-
To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
