Introduction

This guide is for the Euhomy IM-06D icemaker. This guides purpose is to replace the digital display. This part controls the lights and controls of the icemaker on the top of the cover. Some symptoms of this would be the lights for the buttons not turning on or them no longer working. Please make sure to unplug the device before starting all guides.

  1. WsURODEOfeUcZPrL
    WsURODEOfeUcZPrL
    RFllK3OJtE1hChD3
    klAsFePDIlTX42B3

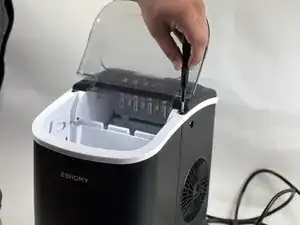

    • Open the lid.

    • Remove the two 5 mm Phillips screws that secure the lid.

    • Gently lift the lid off, with care not to damage or strain the attached cable.

  2. Wnt45hLkV6O3xFqV
    Wnt45hLkV6O3xFqV
    tZqYlKoJIi3QFYqR

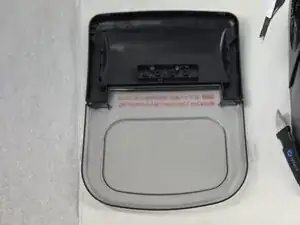

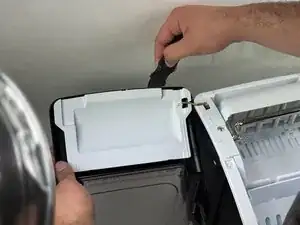

    • Use a jimmy to pop off the white cover on the back of the lid.

  3. 6U2xAJlyOmkJGZUT
    6U2xAJlyOmkJGZUT
    Uv4syaVGRE3nL5Ci
    PYq4CrK2cCG56leU

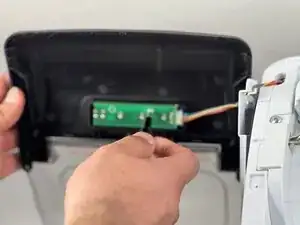

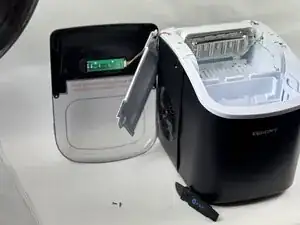

    • Remove the two 5 mm Phillips screws that secure the display PCB.

    • Remove the lid.

  4. 2vBLe34iT4Q1jeFu
    2vBLe34iT4Q1jeFu
    Iqfgq2kUupoyeGQV

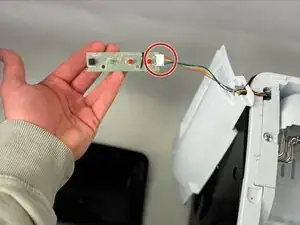

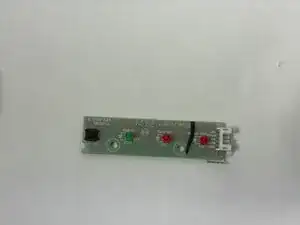

    • Disconnect the display connector.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting or ask our Answers community for help.
