Edifier W820NB Plus Battery Replacement

Written By: Happy Zhang
  • Comments: 0
Edifier W820NB Plus Battery Replacement

Difficulty

Difficult

Steps

10

Time Required

20 - 30 minutes

Introduction

If your Edifier W820NB Plus will not charge or turn on, a faulty battery may be the cause. This guide will walk you through how to replace it. Be careful while removing the old battery. If punctured it could be quite dangerous. Make sure to take the old battery to a recycling center. Old batteries cannot be thrown away with regular trash.

This guide requires soldering. If you're unfamiliar with soldering, review the How to Solder and Desolder Connections guide and take appropriate precautions before beginning.

  1. 1HtL3QaWXWUTYoRp

    • Start with the headphones face up and the earpads visible.

  2. Y4FNUay2QGJF5RdY
    Y4FNUay2QGJF5RdY
    NwdoqnP3pTCgBHDU

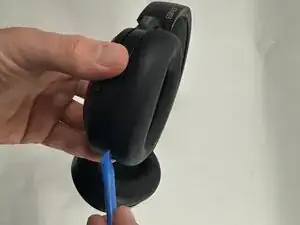

    • Hold the driver housing in one hand and insert an opening tool into the seam between the earpad and driver housing.

  3. lvs2hxQ6EGLJYw5r
    lvs2hxQ6EGLJYw5r
    DrXjYGBHe1QIe1Wo

    • With your inserted opening tool, pry around the perimeter of the ear pad until it fully releases.

    • Repeat this procedure for the other side if necessary.

  4. TDUoBPjATWHtBKQB

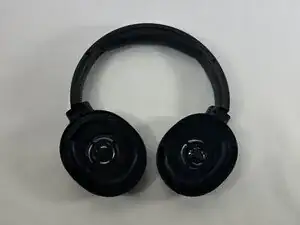

    • Repeat for the other side if necessary.

  5. TZFSCKOeona4gGLY

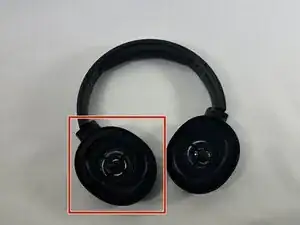

    • Identify the driver you wish to replace.

    • This guide will use the left driver as an example but the same steps can be mirrored when replacing or removing the right driver. The battery is under the left driver, while the motherboard and daughterboard are under the right driver.

  6. ZsUUT4wg63yeQANC
    ZsUUT4wg63yeQANC
    CssTYn1KunTqiSMm

    • Remove all five 5 mm Phillips #0 screws that secure the driver assembly.

  7. IpVph4fCVwDZFPOB
    IpVph4fCVwDZFPOB
    U66vTrtORVLDVQbc
    yINKWBWWiT6bEJFk

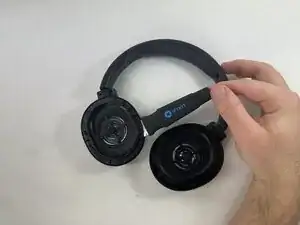

    • Note that the wires for the drivers are on the outermost edge. Try to avoid pushing or cutting them when taking the driver out.

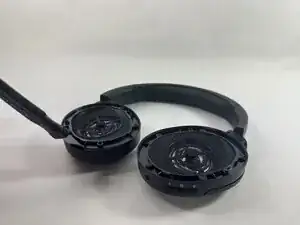

    • Insert a Jimmy in the seam between the driver assembly and driver housing.

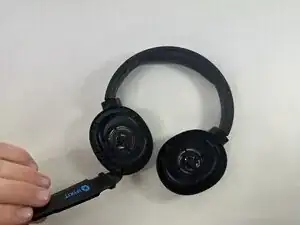

    • Rotate the Jimmy along the entire perimeter of the innermost edge to pry it out of place.

  8. 43TZecScMiKdeQVn
    43TZecScMiKdeQVn
    ftJBEGYSgC5uPvLo

    • Gently remove the driver assembly from the rest of the headphone, with care not to strain the connected wire.

  9. qV5jwVhaofxEdSEV
    qV5jwVhaofxEdSEV
    AeM6eGYYMF3pXddv

    • Skip this step if you are completing a battery replacement.

    • Repeat the procedure for the other driver if necessary.

    • Desolder the four driver connections from the motherboard.

    • Remove the driver assembly.

  10. yjKSLw3ahrrhuXyk
    yjKSLw3ahrrhuXyk
    fbiex3g12NyKkfBX

    • Use an iFixit Opening Tool to gently pry off the battery.

    • Do not bend, twist, or puncture the battery.

    • Note that the battery is stuck on with adhesive so it may be difficult to remove. Feel free to lighly heat the battery with a hairdryer or iOpener to loosen the adhesive.

    • Desolder the battery connections.

Conclusion

To reassemble your device, follow the above steps in reverse order.
For optimal performance, after completing this guide, calibrate your newly installed battery.
Take your e-waste to an R2 or e-Stewards certified recycler.
