Introduction
Use this guide to check and replace the charging port in your DOSS E-Go II wireless speaker. This is important for the device to be charged and work correctly. Before replacing the charging port, it is important to check for dirt and debris. It is also important to make sure your charger and the outlet it is being plugged into are functioning.
Before continuing this guide, make sure to follow up with the troubleshooting page to check for other reasons why speaker buttons may not be working properly. Beware that if the alternative ways don’t fix your button issue, this potential solution requires soldering.
-
-

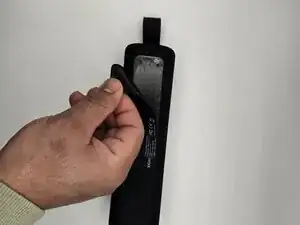

Peel the backing off of the speaker.
-

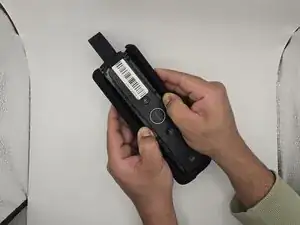

Remove eight 7.9 mm screws using the Phillips #00 screwdriver.
-
Gently pull apart the grille on the sides of the speaker.
-
-
-

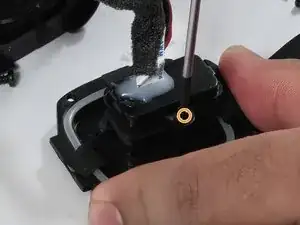

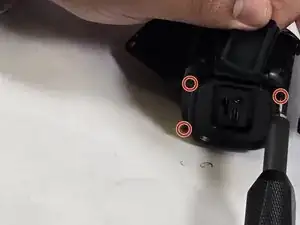

Remove four 7.8 mm screws using the Phillips #00 screwdriver.
-
Pull out the charging port and remove the two 7.8 mm screws using the Phillips #00 screwdriver.
-
Apply a bead of flux.
-
-
-

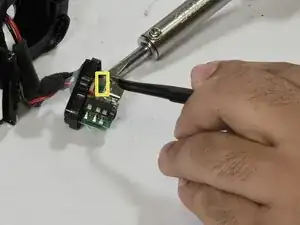

Press the soldering iron tip firmly to melt the solder.
-

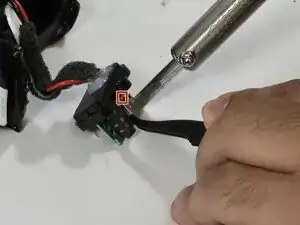

Use tweezers to remove the charging port.
-
To reassemble your device, follow these instructions in reverse order.
