Introduction
Use this guide to replace or fix the button receptors in your DOSS E-GO II wireless speaker. The button receptors are important because they are what the user pushes to give input on the device for it to work efficiently.
Before continuing this guide, make sure to follow up with the troubleshooting page to check for other reasons why speaker buttons may not be working properly. Beware that if the alternative ways don’t fix your button issue this potential solution requires soldering.
-
-

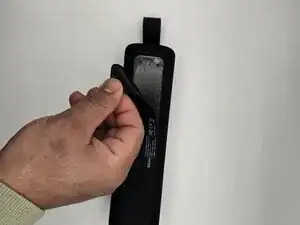

Peel the backing off of the speaker.
-

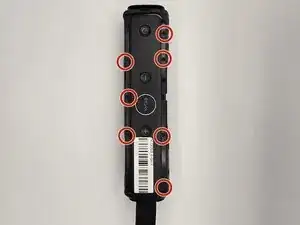

Remove eight 7.9 mm screws using the Phillips #00 screwdriver.
-

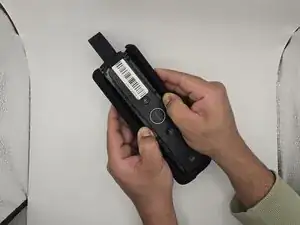

Gently pull apart the grille on the sides of the speaker.
-
-
-
Remove seven 8 mm screws using a Phillips #00 screwdriver.
-
Remove six 7.3 mm screws using a Phillips #00 screwdriver.
-
-
-
Apply a bead of flux.
-

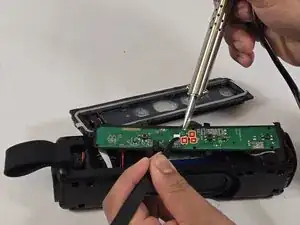

Press the soldering iron tip firmly to melt the solder.
-

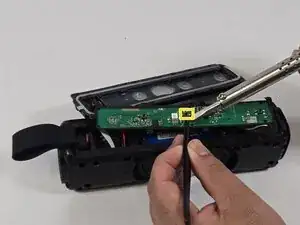

Use tweezers to remove the receptor.
-
-
-
Use a small piece of solder to attach a new receptor.
-
Press the tip 2 seconds on each corner to attach the receptor to the board.
-
To reassemble your device, follow these instructions in reverse order.
