Dell Chromebook 3100 Speakers Replacement

Written By: Avery Mason
  • Comments: 0
Dell Chromebook 3100 Speakers Replacement

Difficulty

Easy

Steps

8

Time Required

1 minute

Introduction

This is a guide on how to replace the speakers from a Dell Chromebook 3100 system. The prerequisite guide needed is the battery removal, please follow those steps before attempting step 1 of the speaker removal guide.

  1. ouIw5quTELMobXxD
    ouIw5quTELMobXxD
    BCCxo3yitQDETNOP
    SN1rOyiAsn2BAJpv

    • Flip the laptop so the bottom is facing upwards.

    • Loosen the nine screws from the back panel using a Phillips #0 screwdriver.

  2. eqTwOXLuoIdypOUL

    • Pry the back panel away from the rest of the laptop using an iFixit opening tool.

  3. WLqhACjnh6iDsvmI
    WLqhACjnh6iDsvmI
    4lEZBBlnYlkiKMbB

    • Remove the screws attached to the battery using a Phillips #0 screwdriver.

    • Disconnect the battery from the motherboard by gently pulling on the connector cable at the top of the battery.

  4. Tb5NG6QxZL6kdeLG

    • Carefully remove the battery.

  5. j3tKjZ1sKEGEEXrL
    j3tKjZ1sKEGEEXrL
    HxgPrnOZ5uuWiOiJ

    • Gently detach the wire connecting the speakers to the motherboard.

  6. hwDjE6Q4AR6fOfGv

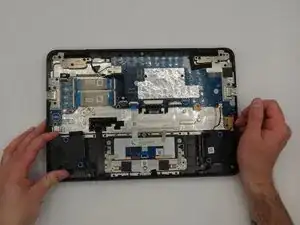

    • Lift up and remove the left speaker assembly from the posts.

    • Speakers are secured by two small posts. Simply lift up on the left speaker assembly module.

  7. M4V6WNePfKBqoSOm

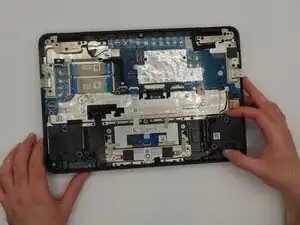

    • Lift up and remove the right speaker module from the posts.

  8. yGbVb3IAPnVYWoDB
    yGbVb3IAPnVYWoDB
    WyBdtHii4LZRJ1tK

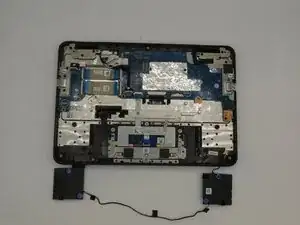

    • Remove the wiring from the wire guides along the bottom portion of the case.

    • Remove the speaker modules and the connected wires from the system.

Conclusion

To reassemble your device, follow these instructions in reverse order.
