Citizen Men's Watch 1102 Series Hands Replacement

Written By: Justin Sidwell
  • Comments: 4
Citizen Men's Watch 1102 Series Hands Replacement

Difficulty

Moderate

Steps

10

Time Required

10 - 15 minutes

Introduction

This guide will walk the reader through the process of replacing the hands of an 1102 series Citizen watch using an iFixit jimmy, tweezers, and a needle. This repair will require minimal knowledge of watches, and can be performed in approximately 10-15 minutes.

  1. CTisIF6cUJAchmRD

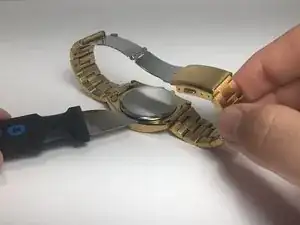

    • Locate the notch under the back cap of the watch. Wedge the jimmy into the notch, and pry off the back.

    Nice I learned it how to open this watch

    check my website: couponcode.gq

    Md Somir Ali -

  2. Bgp4ql4VneOQsohd

    • Remove the circular plastic cover from inside the watch.

    Thanks sir .i learned how to open it

    check my website : www.couponcode.gq

    Md Somir Ali -

  3. aXEjAxJXbeZiPDOS

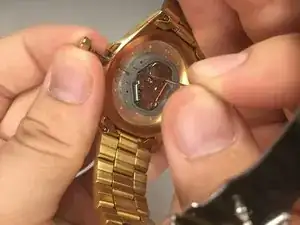

    • Remove the crown stalk by placing the needle in the release notch. This will release stalk and allow it to slide out.

  4. pD55fxuXaZYgmKHH

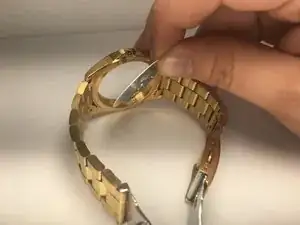

    • Turn watch on its side and let the watch face fall out.

  5. gnE1SW2LfkdcusT2

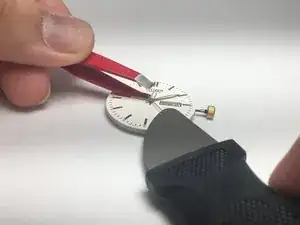

    • Gently pry the watch hands off of the face of the watch with the jimmy and tweezers.

    Scratching the dial in the process.

    Ted -

  6. rIE5lSOi1GIeelHh

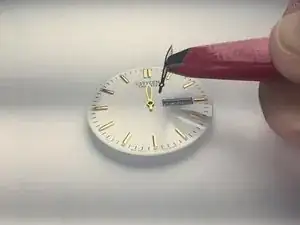

    • Use the tweezers to replace the hands of the watch.

    • First, place the hour hand on the watch face stem, followed by the minute hand, and the second hand.

  7. SPPe5EJRojgMu1SJ

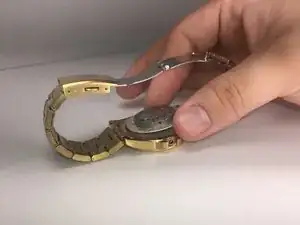

    • Place the watch face downwards in its case.

    • Make sure the crown stalk holes are aligned.

  8. eEBeo3ETjRJGVqJY

    • Insert the crown stalk into the crown stalk holes.

  9. jLcOrLqBSUOBqBuR

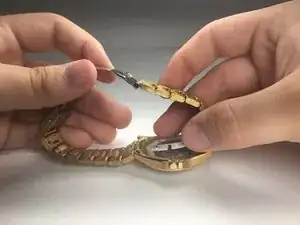

    • Place the plastic cover back in its original place.

    • Use the crown notch for guidance in alignment.

  10. 3x3BOZaLfWwYdSkC

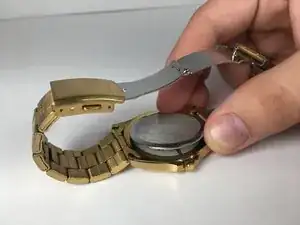

    • Press the back cover on the watch using hands or clamp, until it pops into place.

Conclusion

Now that the watch hands are repaired, the watch can be reset manually so that the it can keep the correct time.

Author

Justin Sidwell

Member since: 28/02/17

111 Reputation

One comment

This would be so confusing for a novice. No image of the release lever and where to press the needle to get the crown out. Use a hand remover to remove hands, cheap enough to buy, not tweezers and a ‘jimmy tool’. No advice about protection on the dial to avoid scratches. ‘Place hands one after the other’, No mention on what to press them on with and how. This part could kill your movement if not done correctly. I have just removed the hands on my Invicta diver as they where not fitted correctly. Replacing them is not that simple without the correct tools. Even a cheap hand press does the job.

Ted -
