Casio CZ-1000 Piano Key Replacement

Written By: CJ Fagundo

Comments: 2

Difficulty

Easy

Steps

Time Required

15 minutes

Introduction

This guide is to replace a damaged or broken piano key on your Casio CZ-1000 synthesizer. A broken piano key can cause the key to feel loose or be unresponsive.

Tools

Step 1

Use a Phillips #1 screwdriver to remove the eleven 7.5 mm screws securing the back plate.

Step 2

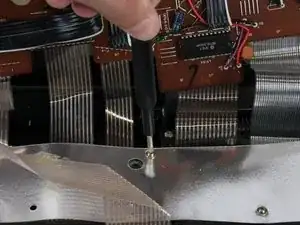

Using a Phillips #1 screwdriver, remove all 14 5.5 mm screws from the two motherboards.
These screws secure the motherboards to the keyboard assembly and the dial on the right side.

Step 3

Carefully cut the zip tie located in the right-hand corner using a pair of scissors or wire cutters.
Be sure to avoid cutting any nearby wires or components.
Gently slide all the plugs out of their sockets.
This will prevent them from catching on anything or damaging the connectors as you lift.

Step 4

Remove the four 7.5 mm screws using a Phillips #1 screwdriver.
Lift the rectangular circuit board away to expose the underside of the key bed.

Step 5

Remove the six 7.5 mm screws using a Phillips #1 screwdriver.

Step 6

Grab the key bed by the side shown.
Lift the key bed up and slide it out from the black case.

Step 7

Flip the key bed over so that the keys are facing up.

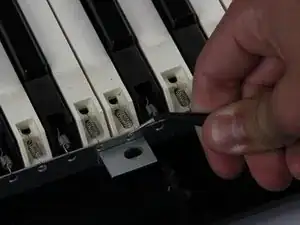

Using a pair of tweezers, detach the spring from both the metal bar and the key itself.
Lift the key out of the slot in the metal bar and replace!

Conclusion

To reassemble your device, follow these instructions in reverse order.
