BolaButty X-GO C27-C Daughterboard Replacement

Written By: jcate
  • Comments: 0
BolaButty X-GO C27-C Daughterboard Replacement

Difficulty

Moderate

Steps

16

Time Required

20 - 25 minutes

Introduction

Use this guide to replace the daughterboard on the BolaButty X-GO speaker.

The daughterboard is what sends signals from the external buttons to the motherboard. If one button is damaged/stops working, it is easier to replace all of them together.

Because the daughterboard is inserted in a 45 degree angle, you will need to remove the speakers and motherboard first to access it.

  1. OaJnq3x6qPprRK1y
    OaJnq3x6qPprRK1y
    KmSd5QKIe4UFjHhB
    h6ZtrOSCPXgyqR5F

    • Take an opening tool or pick and wedge it into the groove between the endcap and the main casing. Wiggle it back and forth.

    • Strike the speaker endcap firmly against a solid surface to pop the end caps off.

    • Removing the end caps requires a good amount of force. There is a realistic chance that you will damage your speaker or break the caps.

  2. WRnI3IQ6RRojBtWQ
    WRnI3IQ6RRojBtWQ
    EYkXjinfY4YgOX1l

    • Wedge an opening tool or a pick under the speaker cover and work it back and forth to loosen it. Repeat for all four sides.

    • Remove the speaker cover.

  3. gBWRmRXTZ1K2nGDR
    gBWRmRXTZ1K2nGDR
    NtixgLbPiFDbBeBN

    • Remove the eight 12 mm screws securing the driver housing using a Phillips #0 screwdriver.

    • Gently pull apart the two halves of the speaker.

    • Take care not to strain the cables.

  4. sAOtUhpQJNmukxSx
    sAOtUhpQJNmukxSx
    ELn4UNDGJayZD1YE

    • Use a Phillips #0 screwdriver to remove the three 10 mm screws securing the charging housing.

    • Separate the charging port from the battery.

  5. bT2reDI4sZTBMkuq
    bT2reDI4sZTBMkuq
    GnBiwKQtBSsbQJYs

    • Use a pair of tweezers to lift the black ZIF locking flap securing the ribbon attached to the charging port.

    • While pulling up on the latch, remove the ribbon.

  6. lSDPVZcSxt2dMRTk
    lSDPVZcSxt2dMRTk
    Tbfr2o1HptXJvOvQ

    • Disconnect the battery connector from its motherboard port.

  7. slJdRYZ4a4ZSngay
    slJdRYZ4a4ZSngay
    wAU2hKVSLsRCLT3f

    • Use a spudger to lift the battery from the casing.

    • The battery is secured with some adhesive. If you have a difficult time removing it, use a hairdryer to lightly heat the adhesive.

  8. r2WSvUkZ4GVGCRxm
    r2WSvUkZ4GVGCRxm
    cSHSBB3tkfqYxFX5

    • Remove the LED board.

    • There will be some adhesive securing the board in place, so it won't feel like it will come out easily. Wiggle the board back and forth to loosen it before pulling vertically to remove.

  9. UlbnY4w6P6Y3iSJu
    UlbnY4w6P6Y3iSJu
    l2Zh4XODl3gAmOr2
    WB1cWG6RTm6BBGy3

    • Unplug the driver connectors from the motherboard.

    • Remove the driver.

    • If you have difficulty with the wires, wiggle the connector back and forth to loosen it.

  10. Os1cpXPHyFWMmNFv

    • Repeat previous two steps for the second speaker.

  11. xUDnrYl4P66PgZuS
    xUDnrYl4P66PgZuS
    1DqREFcMCLsibfl1

    • Use tweezers to disconnect the two cables connected from the daughterboard.

    • Make sure to pull on the plastic connector and not on the wires to avoid damaging the wires.

  12. FC5eMBYOMIA1iBMQ

    • Use the Phillips #0 screwdriver to remove the four 8 mm screws holding the motherboard in place.

  13. trHBNsuSrLZje2Ts

    • Lift the motherboard out.

  14. 1RGI2FAEGieWwIkq
    1RGI2FAEGieWwIkq
    AFchUwCYA3ANKJJc

    • Disconnect the ribbon cable from the daughterboard.

  15. 1dFAt5JZ4vnsncWg

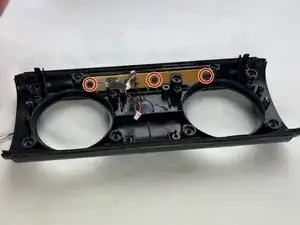

    • Remove the three 10 mm Phillips screws that secure the daughterboard.

  16. fpFL66kcdoSMsANf
    fpFL66kcdoSMsANf
    Xo5YQfCTMVBe5hEj
    qDNgYxNDOSkmiFBL

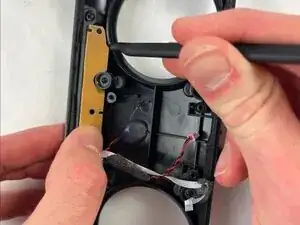

    • Gently lift out the daughterboard and remove it.

Conclusion

To reassemble your device, follow the above steps in reverse order.
