Introduction

Use this guide to restore the brush roller on your Belife V11 Cordless Stick vacuum when the brush roller begins to spin slowly or fully stop spinning. This guide includes step by step instructions on how to disassemble the vacuum, clean the roller brush, and reassemble the vacuum. Before beginning, make sure to turn off and disconnect the vacuum from any power source.

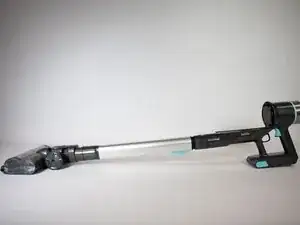

  1. HqUEM4gaxYFQrDxH
    HqUEM4gaxYFQrDxH
    uNuZc5GkMB1VEfta
    • Lay your vacuum cleaner flat on the floor.

  2. xMK4VKfDeU5IKdPn
    xMK4VKfDeU5IKdPn
    J4pOP4D6jsFF5lam
    NSffVRjqtWwHlAsj

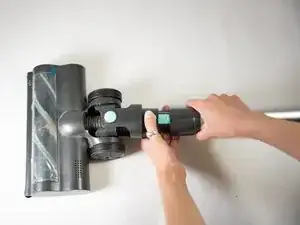

    • Press down on the blue switch and pull to detach the vacuum head from the vacuum body.

  3. JT5JIaKreb6Dqe3G
    JT5JIaKreb6Dqe3G
    UN3ZEfYRtvRBtKLP

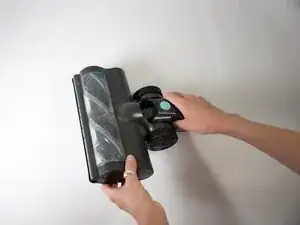

    • Flip the vacuum head over, so that the roller brush is facing up.

  4. ZPVkIbIdRBetBGEi
    ZPVkIbIdRBetBGEi
    OfQQMjWbV1x2RnrY
    cQN6leBLXCKrcN52

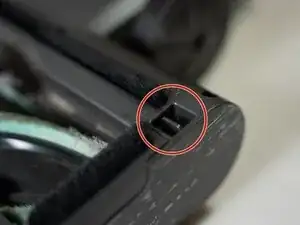

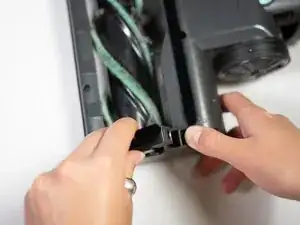

    • Pull the release button to remove the roller brush lock and set the lock aside.

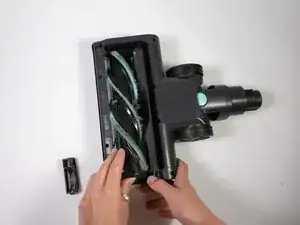

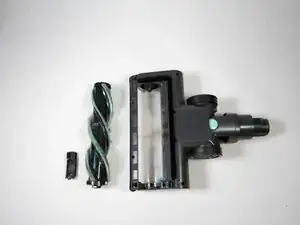

  5. 1N34BP4rjUHZpPTS
    1N34BP4rjUHZpPTS
    2mwHhGkuet6OcFGi
    bLnVqbHA3AcREAjo

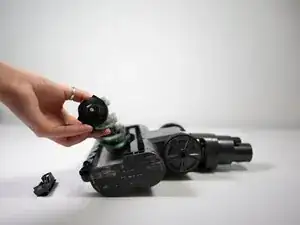

    • Lift the roller brush up and remove it from the vacuum head. Set the roller brush to the side.

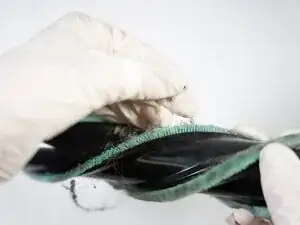

  6. qZEcEVI1ivVtEaAr
    qZEcEVI1ivVtEaAr
    HdUkOylTN2STBTWS

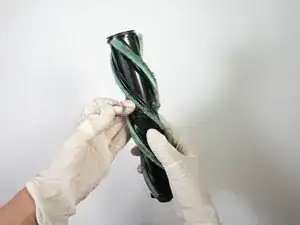

    • Use your hands or other tools to remove hair and dust from the brush body.

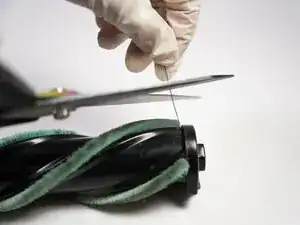

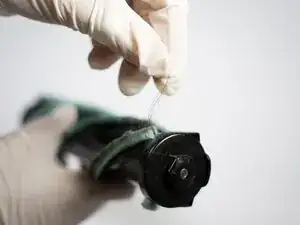

  7. LAQw6IYyUDJXRhCV
    LAQw6IYyUDJXRhCV
    1LQQDTkar2iESQNR
    • Use scissors to cut debris away from the left and right sides of the roller.

    • If necessary, wash the brush roller with water and air dry.

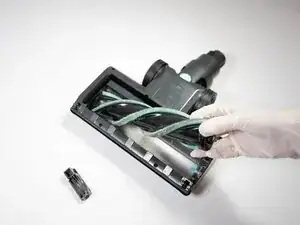

  8. NZKcmFhV1FZAtDDh
    NZKcmFhV1FZAtDDh
    JpDrAs44MPSV2KCl

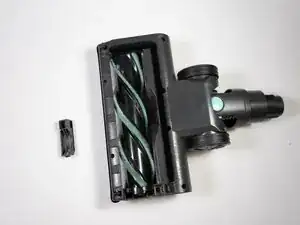

    • Replace the roller by inserting the left side first and aligning the right side with the brush holder.

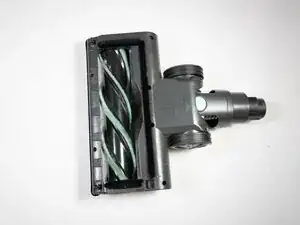

  9. eqHYcUoAjiJcqLup
    eqHYcUoAjiJcqLup
    MmSS2uqQu6mWhVFi
    1Uj5P2K21esdLEJU
    • Replace the brush lock to secure the roller brush in place.

  10. HjKLXrJAByFIG6kf
    HjKLXrJAByFIG6kf
    BINMAtASaIZDTxfw
    MCR6AOFnXkEuERMp

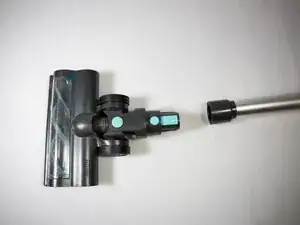

    • Turn the vacuum head over, so that the brush is face down.

    • Reattach the vacuum head to the vacuum body by aligning the blue button and pushing in until it is locked.
