Audio Technica AT-LP60XUSB Turntable Belt Replacement

Written By: Kenny
  • Comments: 0
Audio Technica AT-LP60XUSB Turntable Belt Replacement

Difficulty

Moderate

Steps

6

Time Required

5 - 10 minutes

Introduction

In this straightforward guide, we will show you how to disassemble and replace the belt of an Audio Technica AT-LP60XUSB turntable. This guide is helpful for many reasons, such as restoring proper platter rotation and improving playback performance when your original belt is worn out or broken.

Before you begin this repair, make sure your turntable is turned off and unplugged from the outlet.

  1. iZEt3ZJD1Y24Bhky

    • Disconnect the power from the turntable.

    • Never work on the turntable while it’s plugged in.

  2. lfOneQYQPiq3TuZG
    lfOneQYQPiq3TuZG
    YFyVECsbLi5yPKwM

    • Remove the rubber slipmat from the turntable and place it to the side.

  3. IHyGDjZKWUexwcgW
    IHyGDjZKWUexwcgW
    VbZG1gdWOm4xgZRS

    • Pull the metallic platter with the broken belt straight up to remove it.

    • Do not use excessive force when removing the platter, as it may cause damage to internal components.

  4. HxmVelatgTr2FbbR
    HxmVelatgTr2FbbR
    1POZ6NDXx6OSsXYc
    SIfKbKeCccYeS6EU

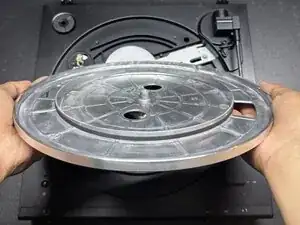

    • Flip the metallic cover upside down.

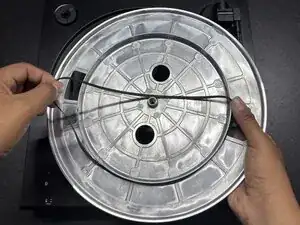

    • Remove the old belt.

    • Place the new belt around the circle on the bottom of the plate.

    • Ensure the belt lies flat and is not twisted or bunched up.

  5. UHm5TN4KEMTgZEpt
    UHm5TN4KEMTgZEpt
    4AWdHREkZ64JPa5K
    TYxorbBbovrSZSDO

    • Flip the metallic plate over and place it onto the turntable.

    • Align the hole in the center of the plate with the silver knob in the middle of the turntable.

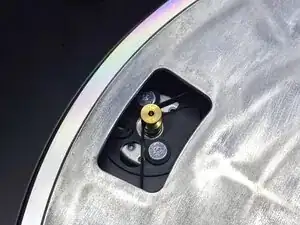

    • Rotate the metal plate until the rectangular opening near its edge lines up with the gold knob in the top-left corner.

    • Use your fingers to pull the belt through the rectangular opening and loop it around the gold knob.

    • Be gentle while stretching the belt onto the pulley to avoid tearing or misalignment.

  6. mlAjTVFrgglTWBSn

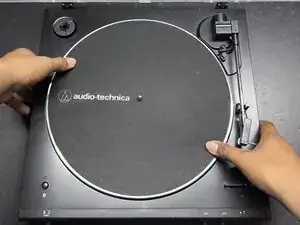

    • Place the rubber slipmat back on top of the turntable.

    • Connect the power to the turntable.

    • Turn the metallic plate on the turntable to confirm that the belt is spinning properly.
