Asus X515 SSD Replacement

Written By: Jeremiah C.
  • Comments: 1
Asus X515 SSD Replacement

Difficulty

Easy

Steps

4

Time Required

1 - 5 minutes

Introduction

In this guide I will be showing you how to replace the SSD in your ASUS X515.

  1. Ymiu5dQgWiXkJrKT
    Ymiu5dQgWiXkJrKT
    RYxPYNtLMIs6tdTM

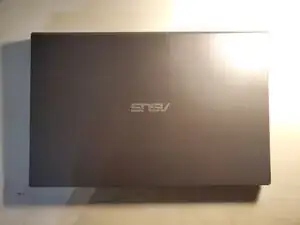

    • Power down the laptop and unplug all of the cables.

    • Flip over the laptop.

  2. CYhJPXrps5jTiK4S
    CYhJPXrps5jTiK4S
    i1shB4EBujouFdvR

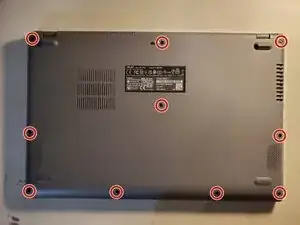

    • Remove the 10 phillips screws from the bottom of the case.

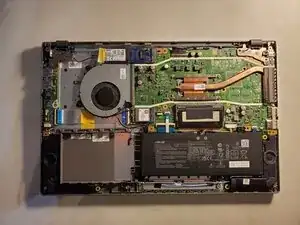

    • Using a prying tool pry the bottom of the case open.

  3. gXS1FjocKEYYOnwT
    gXS1FjocKEYYOnwT
    nTYm6A5QjbjXeBhn
    war2hZja66RI3sAe

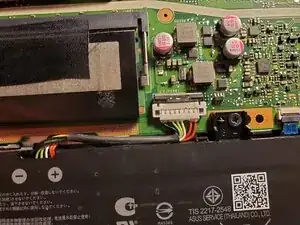

    • Locate the battery and its connector.

    • Using your fingers or a prying tool pull up on the connector to disconnect it.

  4. ETtGZf3nIxQBkjq6
    ETtGZf3nIxQBkjq6
    5P16gSBbMeRtFGFd
    THFp4VujRADRoFHb

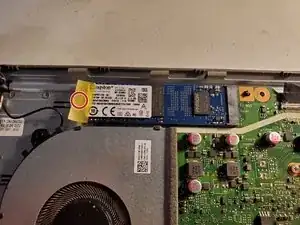

    • Locate the SSD

    • Peel the tape so that you can access the screw.

    • Remove the single screw.

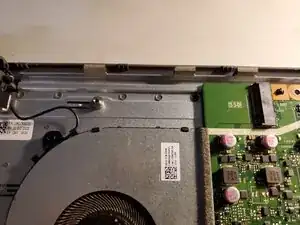

    • The SSD will pop up and face outwards.

    • Pull the SSD outwards.

    i want up a hdd in space slot hdd im was buy caple flex conect hdd 2.5 but it don't conected

    06.nguyễn lê hoàng đức -

Conclusion

To reassemble your device, follow these instructions in reverse order.
