Introduction
In this guide I will show you how to remove the RAM from your ASUS X515 laptop.
-
-

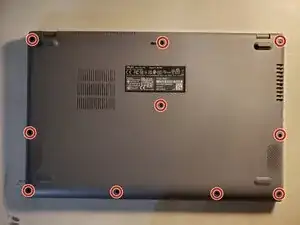

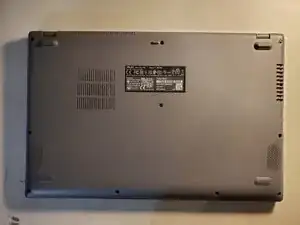

Remove the 10 phillips screws from the bottom of the case.
-

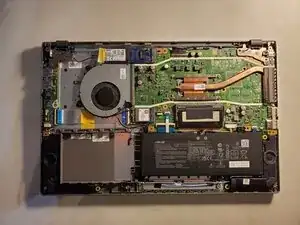

Using a prying tool pry the bottom of the case open.
-
-
-

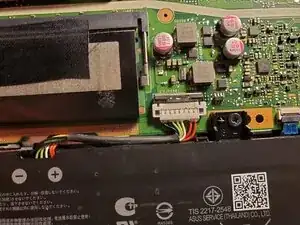

Locate the battery and its connector.
-

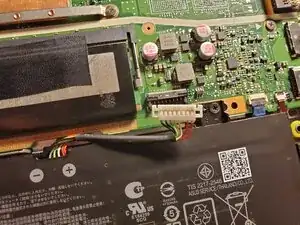

Using your fingers or a prying tool pull up on the connector to disconnect it.
-
-
-

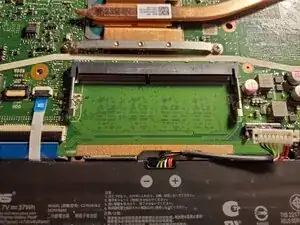

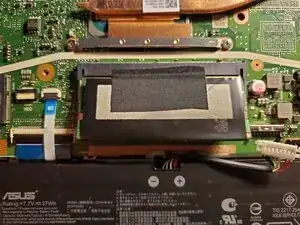

Locate the stick of RAM.
-
Using your fingers, pull the metal arms on the sides of the RAM away from it.
-
The RAM will face upwards.
-
Remove the RAM from its slot by pulling it out.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
