Asus VivoBook S14 Speakers Replacement

Written By: Savanah Dick
  • Comments: 0
Asus VivoBook S14 Speakers Replacement

Difficulty

Easy

Steps

9

Time Required

5 - 10 minutes

Introduction

If you have noticed crackling, distortion, or low audio quality coming from the speakers on your Asus VivoBook S14, you may need to replace them. This guide will provide a step by step process to remove the faulty speakers and replace them.

  1. SkAXX6FgDEu43Gcl
    SkAXX6FgDEu43Gcl
    QxMhZBIRuSxoswEW

    • Remove all eleven 5 mm screws on the back panel with a JIS #000 screwdriver.

    • Gently pry off the back cover.

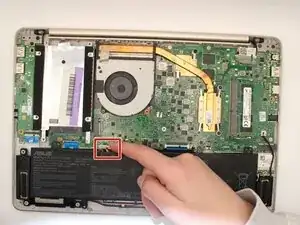

  2. JgpVxJJepgX2Ssl5

    • Carefully detach the connector from the motherboard.

    • If the battery is swollen or is need of disposal, please follow this guide.

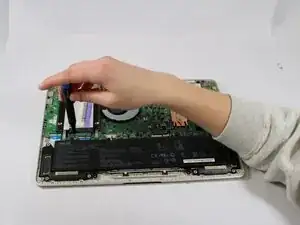

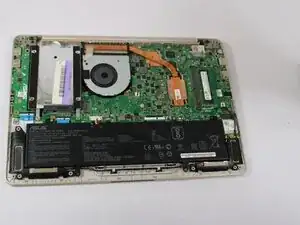

  3. AKsDNjcrXgBhjCrC
    AKsDNjcrXgBhjCrC
    O2qYiJicr42CexFh

    • Remove the 5 mm screws holding the battery in place with a JIS #000 screwdriver.

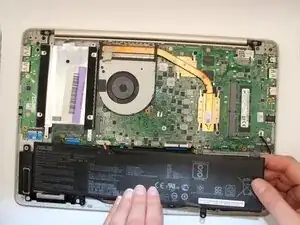

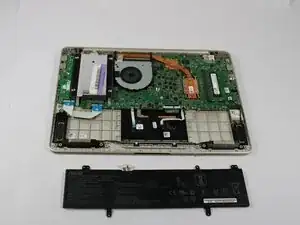

  4. pHOOFvwWj1WbItZf
    pHOOFvwWj1WbItZf
    GmPEVCmoOyKwHsJB

    • Lift the battery out of the battery socket.

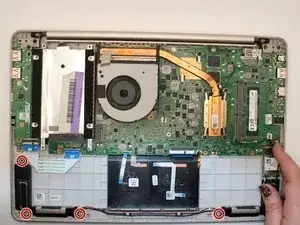

  5. USioTjoTIVxAoTJi

    • Remove a total of five 5 mm JIS #000 screws from the speakers.

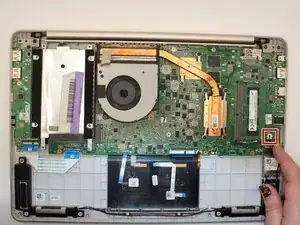

  6. 1jRqHSeXRrNGXK3D

    • Detach the speaker connector from the motherboard.

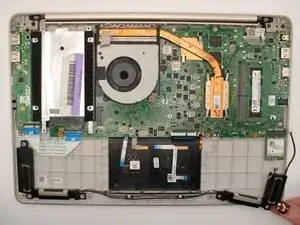

  7. CqbJWnWGtZdC1FCj

    • Lift the right speaker out of the computer.

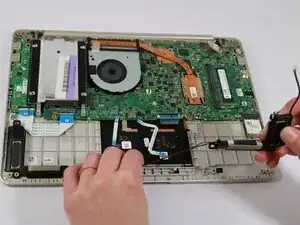

  8. DhcDQYocVTqMECpv

    • Carefully remove the wires connecting the speakers to each other from the computer.

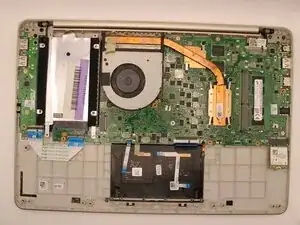

  9. QCr6H6AIFiuoXxf1
    QCr6H6AIFiuoXxf1
    JjLjXkFvUYTBECon

    • Lift the left speaker out of the computer.

Conclusion

To reassemble your device, follow these instructions in reverse order.
