Introduction
Use this guide to replace the battery in the Asus L410MA-TS02 device.
Removing the battery is a task with minimal risk to the device. Remember to wear an ESD wrist strap anytime you're opening an electronic device. There is no special requirements necessary to replace the battery as it is a rather simple process to follow and complete, and with no major hazards other than the risk of damaging the laptop if following the instructions incorrectly.
The reasoning for why one may need to replace the laptops battery can be for many different reasons, but mainly comes down to the battery being damaged, ineffective, or just degraded due to age, making the battery drain faster than normal and therefore necessary to replace it with a new one. This is especially true since asus laptops do have many cases where people with one may have problems with the battery such as it draining quickly or turning off shortly or immediately after being unplugged from a charger.
Tools
-
-
Remove ten 6 mm screws that secure the lower case using a Phillips #1 screwdriver.
-

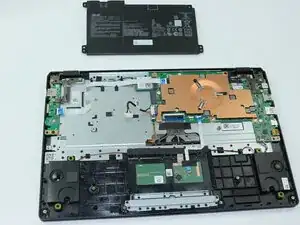

Carefully remove the lower case.
-
-
-

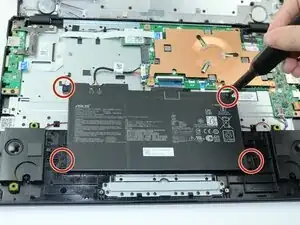

Grip the white battery connecter found on its side and pull it directly out of its battery port.
-
To reassemble your device, follow these instructions in reverse order.
