Introduction
With frequent use and the heavy weight of clutter, cabinet drawer slides can easily deform, causing the drawer to not slide smoothly. We present a guide that will explain how to replace a drawer slide of a cabinet drawer.
Tools
Parts
-
-

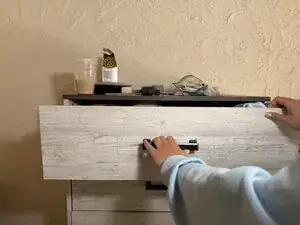

Pull the drawer out.
-

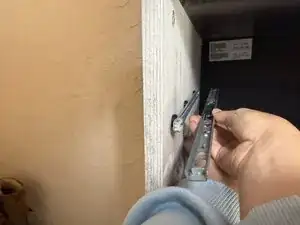

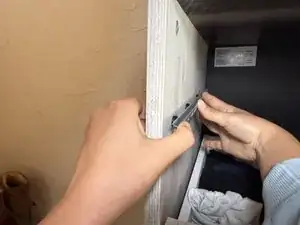

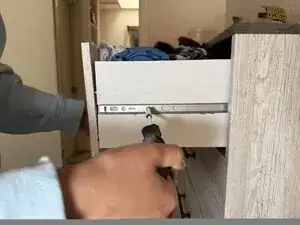

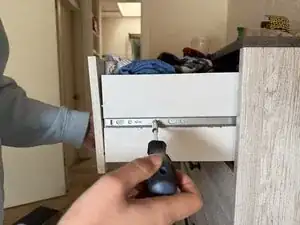

Use a screwdriver and remove the screw connecting the drawer slide bracket to the drawer.
-
Repeat the previous bullet for both sides.
-
-
-

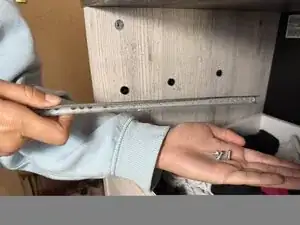

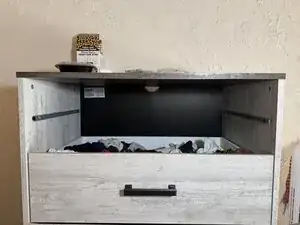

Remove the screws on the internal railing that needs to be replaced by twisting the screwdriver counterclockwise.
-
-
-

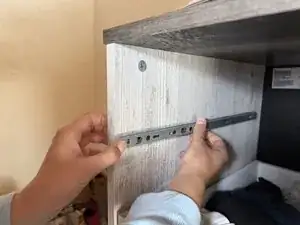

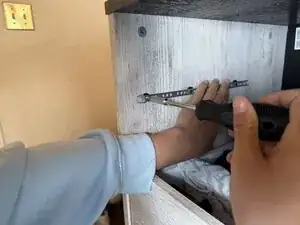

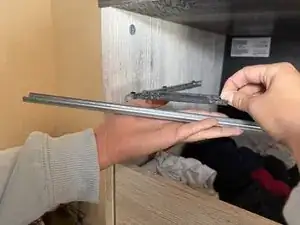

Hold up the new internal railing against the cabinet wall and screw it in using the same screws and by twisting the screwdriver clockwise.
-
-
-

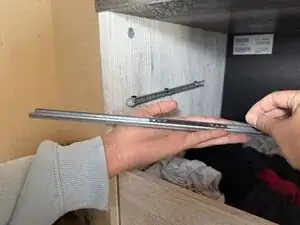

The drawer slide should be facing towards the ceiling and then place the ball bearing runner directly into it, so it fits snugly.
-
-
-

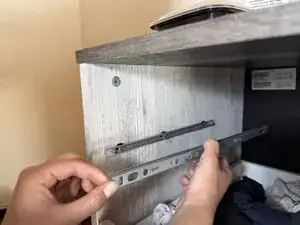

Align the new drawer slide with the ball bearing runner onto the internal railing and snap them into place.
-
-
-
Screw the drawer slide back onto the drawer by turning the screwdriver clockwise.
-
Do this for both sides.
-
Then, you can push the drawer smoothly back in.
-
