Anker Soundcore Motion Boom Plus Motherboard Replacement

Written By: Hayley
  • Comments: 0
Anker Soundcore Motion Boom Plus Motherboard Replacement

Difficulty

Moderate

Steps

16

Time Required

45 minutes - 1 hour

Introduction

This guide will show you how to replace the Anker Soundcore Motion Boom Plus motherboard. The motherboard is the main circuit board that controls the speakers' key functions, such as Bluetooth connectivity, charging, power, and audio. If your device is experiencing failure to power on, inability to charge, distorted sound, Bluetooth issues, or any controls that might be sensitive, the motherboard may be damaged and may need replacement.

Replacing the motherboard involves small and fragile parts, so be sure to use the correct tools to prevent any damage to the device. Ensure the device is turned off before proceeding with the step-by-step guide.

  1. XWGiE32O41PfdGxm
    XWGiE32O41PfdGxm
    oE26Mfx1SHJ5Qaif
    hFroDkoGGHHFYKUU

    • Insert an opening tool into the seam between the speaker grille and the chassis.

    • Pry the tool around the top, bottom, and sides until the grille fully releases.

    • Apply gentle pressure to avoid damaging the grille.

    • Remove the grille.

  2. mYQBEn23nwThq3PE
    mYQBEn23nwThq3PE
    VTDmFMZxkgUKJ1Pv

    • Remove the two passive radiators on either side of the device.

    • Avoid pulling too hard or with too much force to prevent breaking the passive radiators.

  3. RPTdMNIRIwTtutc3
    RPTdMNIRIwTtutc3
    tX1cBsCKJVIgJg3P

    • Remove the sixteen 14 mm Phillips screws, eight on each end of the speaker.

  4. d4f6y52lIyCQIeqM
    d4f6y52lIyCQIeqM
    vgjHVsLtpUC2BBD5
    x6Op5WpkHseI4mxH

    • Gently remove the handle from the device by clicking off the handles from the sides and then pulling it off.

  5. KhEZUtigO4mxMmJG
    KhEZUtigO4mxMmJG
    fJJUxtuVocFRMgUZ

    • Flip the speaker onto its side and use a spudger to remove the two rubber feet on the bottom of the device.

  6. CDp4HSupNkYQneey
    CDp4HSupNkYQneey
    ZmboJVJOIPYfpbnD

    • Remove the eleven 13 mm Philips screws that secure the driver housing.

  7. hg2HVC3SX3FonWPV
    hg2HVC3SX3FonWPV
    TkDVpEIBH2m4Gfix

    • Remove the two 14 mm Phillips screws located on each side of the handle, near the clip points.

  8. U2fks2XxoYvRkRhA
    U2fks2XxoYvRkRhA
    5hTBSrESYWHiKXA4

    • Remove the four 14 mm Philips screws on the top of the device.

  9. KPH65eOXVVdNE2tS

    • Insert a spudger into the seam on top of the device.

    • Gently pry the casing open.

  10. ne2XVrmIxKtTsLxo
    ne2XVrmIxKtTsLxo
    ZCFAnSwUShPQSMFe
    hVDgitxCqvixFIBH

    • Disconnect each of the three cables by gently pulling the connectors out of their sockets.

    • Do not pull with force. The ribbon cables are fragile and easily break.

  11. yjE1CVMa5QbQGaZf
    yjE1CVMa5QbQGaZf
    VbiSfjgY6UMsmqc3
    TYPbLUPaXOluZNdJ

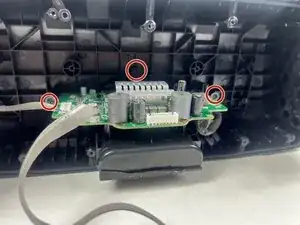

    • Remove the three 12 mm Phillips screws securing the motherboard to the chassis.

    • Remove the two 10 mm Phillips screws surrounding the battery.

  12. brkeVQoVIoOYwGmE
    brkeVQoVIoOYwGmE
    moiRDPHaUNrEGZPI

    • Flip the speaker over and push the charging port inward.

  13. GswMa2PjPI5TXJTA

    • Slide the motherboard and battery out by pushing through the charging port.

    • The motherboard and battery assembly should detach easily.

  14. dhM2oTc6bRQEgURm
    dhM2oTc6bRQEgURm
    CZI1WQ3IInqifSDx

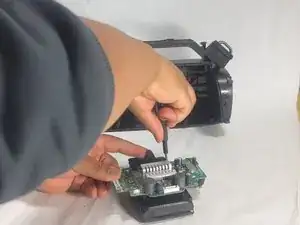

    • Remove the five 10 mm Phillips screws securing the motherboard and battery together.

    • Gently lift the motherboard from the battery once all screws are removed.

    • Handle with care to avoid damaging any of the components.

  15. LhKwJnT3puMPYxyP

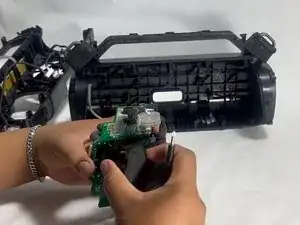

    • Gently pull the motherboard and battery apart.

  16. 3KORIXPbRXsTfILO

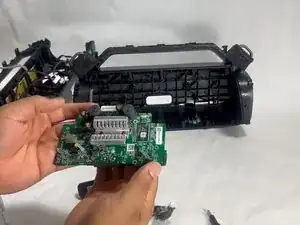

    • Reconnect the new motherboard to the battery.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
