Anker Soundcore Motion Boom Plus Battery Replacement

Written By: Hayley
  • Comments: 0
Anker Soundcore Motion Boom Plus Battery Replacement

Difficulty

Moderate

Steps

17

Time Required

1 hour

Introduction

Use this guide if you have issues with the Anker Soundcore Motion Boom Plus battery. If it decides to turn off unexpectedly or does not turn on, the battery might be drained or fail and needs to be replaced.

Before continuing with this guide, it is important to rule out any other possible causes. If the device is not charging, try using different charging cables or a different power source to rule out whether the battery might just be low. With that, ensure that the charging port is not damaged.

This repair requires opening the device, so please be cautious of any components that may be sensitive to static or accidental damage. You will need tools to avoid harming the device and to make the replacement/teardown easier. Make sure to fully power the speaker before replacing the device to avoid electrical shock or anything else dangerous.

  1. XWGiE32O41PfdGxm
    XWGiE32O41PfdGxm
    oE26Mfx1SHJ5Qaif
    hFroDkoGGHHFYKUU

    • Insert an opening tool into the seam between the speaker grille and the chassis.

    • Pry the tool around the top, bottom, and sides until the grille fully releases.

    • Apply gentle pressure to avoid damaging the grille.

    • Remove the grille.

  2. mYQBEn23nwThq3PE
    mYQBEn23nwThq3PE
    VTDmFMZxkgUKJ1Pv

    • Remove the two passive radiators on either side of the device.

    • Avoid pulling too hard or with too much force to prevent breaking the passive radiators.

  3. RPTdMNIRIwTtutc3
    RPTdMNIRIwTtutc3
    tX1cBsCKJVIgJg3P

    • Remove the sixteen 14 mm Phillips screws, eight on each end of the speaker.

  4. d4f6y52lIyCQIeqM
    d4f6y52lIyCQIeqM
    vgjHVsLtpUC2BBD5
    x6Op5WpkHseI4mxH

    • Gently remove the handle from the device by clicking off the handles from the sides and then pulling it off.

  5. KhEZUtigO4mxMmJG
    KhEZUtigO4mxMmJG
    fJJUxtuVocFRMgUZ

    • Flip the speaker onto its side and use a spudger to remove the two rubber feet on the bottom of the device.

  6. CDp4HSupNkYQneey
    CDp4HSupNkYQneey
    ZmboJVJOIPYfpbnD

    • Remove the eleven 13 mm Philips screws that secure the driver housing.

  7. hg2HVC3SX3FonWPV
    hg2HVC3SX3FonWPV
    TkDVpEIBH2m4Gfix

    • Remove the two 14 mm Phillips screws located on each side of the handle, near the clip points.

  8. U2fks2XxoYvRkRhA
    U2fks2XxoYvRkRhA
    5hTBSrESYWHiKXA4

    • Remove the four 14 mm Philips screws on the top of the device.

  9. KPH65eOXVVdNE2tS

    • Insert a spudger into the seam on top of the device.

    • Gently pry the casing open.

  10. ne2XVrmIxKtTsLxo
    ne2XVrmIxKtTsLxo
    ZCFAnSwUShPQSMFe
    hVDgitxCqvixFIBH

    • Disconnect each of the three cables by gently pulling the connectors out of their sockets.

    • Do not pull with force. The ribbon cables are fragile and easily break.

  11. Ar4rBonB2nXOfAjg
    Ar4rBonB2nXOfAjg
    vj6hXiuQMfXKXbcA
    k1dxWA6jjhnEjJDR

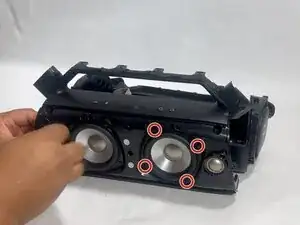

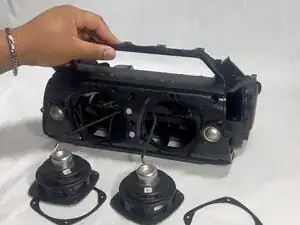

    • Remove the four 11 mm Phillips screws securing the subwoofer.

    • Gently pull the subwoofer out of the device.

  12. QbIRSTCKHT2UI23R
    QbIRSTCKHT2UI23R
    5xEZxmeGdQ4efv6T
    M3dQOVd6Vv2RM2X2

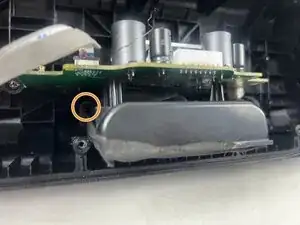

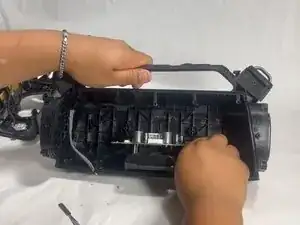

    • Remove the three 12 mm Phillips screws surrounding the motherboard using a screwdriver.

    • Remove the two 10 mm Phillips screws surrounding the battery.

  13. DbcNPZAPnSCPZZ4F
    DbcNPZAPnSCPZZ4F
    vTAMC2SGmaUuvI3R

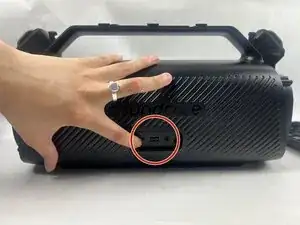

    • Flip the speaker over and push the charging port inwards.

  14. M2EJVDiuWMwiOXiM

    • Slide the motherboard and battery out by pushing through the charging port.

    • The motherboard and battery assembly should detach easily.

  15. N6kYFYwaVWlaNKXh
    N6kYFYwaVWlaNKXh
    Ls5nIeeLIVoPCIXP

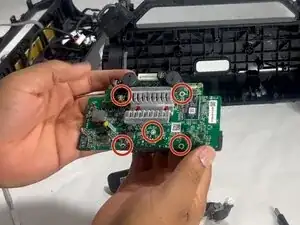

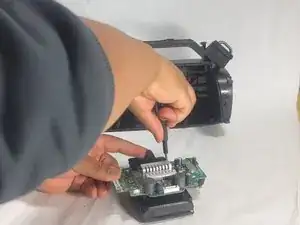

    • Remove the five 10 mm Phillips screws securing the motherboard and battery together.

    • Gently lift the motherboard from the battery once all screws are removed.

    • Handle with care to avoid damaging any of the components.

  16. xaNLcNnVEAcXpD1V

    • Gently pull the motherboard and battery apart.

  17. MKTEjKSZv6JpMZUR

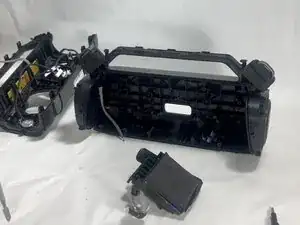

    • Position and reconnect the new battery where the old battery was located.

Conclusion

To reassemble your device, follow the above steps in reverse order.
For optimal performance, after completing this guide, calibrate your newly installed battery.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting or ask our Answers community for help.
