Anker Soundcore Motion 300 Drivers Replacement

Written By: Holly Hoffman
  • Comments: 0
Anker Soundcore Motion 300 Drivers Replacement

Difficulty

Moderate

Steps

6

Time Required

10 - 15 minutes

Introduction

Are the speakers on your Anker Soundcore Motion 3000 muffled, the audio coming in and out, or seemingly broken; causing the audio from your device to be distorted? All you need is a Phillips head screwdriver, your opening tool, and the replacement guide below to help with your problem.

  1. OItlSMwtN4P2qBT2
    OItlSMwtN4P2qBT2
    jYPRDnJMyMltpmUu

    • Insert an opening tool into a seam between the grille and chassis.

    • Gently pry the grille up to begin disengaging the retaining clip.

    • Once a corner starts to lift, slowly slide the tool along the edge to loosen more of the grille.

  2. bkFJapOMKiulXWKL
    bkFJapOMKiulXWKL
    l1kivKoqZLQRYA6E

    • Keep working around the edges until all the clips are loose.

    • You may hear soft clicking sounds as the clips come undone.

  3. Y4UUOgwKLG1BiVVB

    • Carefully remove the grille from the speaker.

  4. MGY3nCpGRrarVmPF
    MGY3nCpGRrarVmPF
    2FBofBVlj6iJJqOJ
    WZOTyY3TqLpokH5F

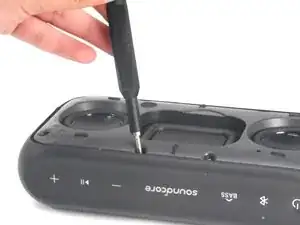

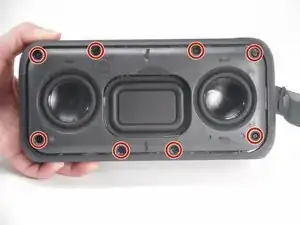

    • Use a Phillips #0 screwdriver to remove all eight 11.5 mm screws that secure the driver housing.

  5. SPlC2ol6Gms5neci
    SPlC2ol6Gms5neci
    RhgjEbpEqTUZXicb
    DRdNUPGSS5uhAfqd

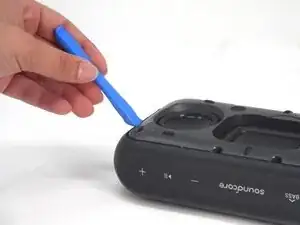

    • Use an opening tool to pry up the speaker housing.

    • Set the speaker housing beside the speaker, with care not to strain the cables connected to the drivers.

    • The speaker housing may be very difficult to remove due to adhesive. If necessary, use a hairdryer to lightly heat the perimeter of the housing to loosen the adhesive.

  6. XAShCX336dmwhpLU
    XAShCX336dmwhpLU
    sDB244SIIOH1iIXP
    BWDdWUAkMkEdmy6K

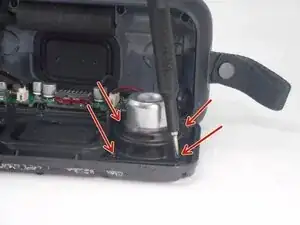

    • With a Phillips #0 screwdriver, remove the four 7.5 mm screws that secure the driver.

    • Repeat the previous bullet for the other driver.

    • Gently lift off the drivers; the speakers may be slightly glued or stuck to the plastic plate so try not pull on the wiring attaching the components.

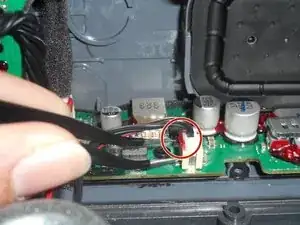

    • Disconnect each of the the two driver connectors from the motherboard.

    • There may be a small piece of sealant that must be removed before the connectors can be removed.

    • Remove the drivers.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting or ask our Answers community for help.
