Anker Soundcore Motion 300 Battery Replacement

Written By: Holly Hoffman

Comments: 0

Anker Soundcore Motion 300 Battery Replacement

Difficulty

Moderate

Steps

Time Required

10 minutes

Introduction

Is the battery in your Anker Soundcore Motion 3000 overheating, depleting fast, or overall needs to be changed? Then all you need is your Philip’s head screwdriver #0, the blue plastic opening tool, a hair dryer (if necessary); and this replacement guide below to help you with your issue.

Tools

Step 1

Insert an opening tool into a seam between the grille and chassis.
Gently pry the grille up to begin disengaging the retaining clip.
Once a corner starts to lift, slowly slide the tool along the edge to loosen more of the grille.

Step 2

Keep working around the edges until all the clips are loose.
You may hear soft clicking sounds as the clips come undone.

Step 3

Carefully remove the grille from the speaker.

Step 4

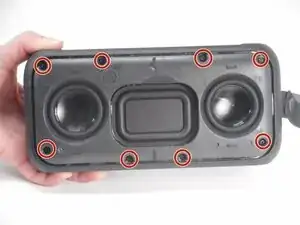

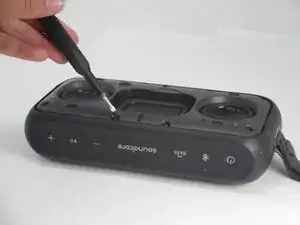

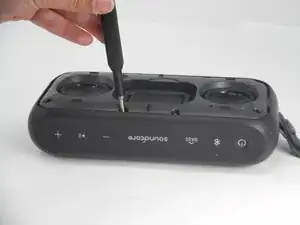

Use a Phillips #0 screwdriver to remove all eight 11.5 mm screws that secure the driver housing.

Step 5

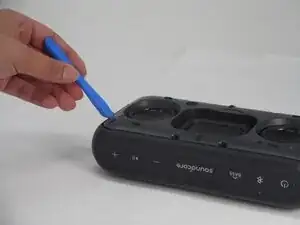

Use an opening tool to pry up the speaker housing.

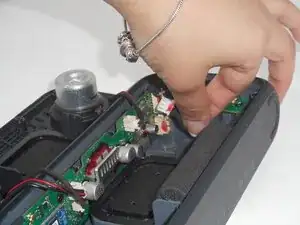

Set the speaker housing beside the speaker, with care not to strain the cables connected to the drivers.
The speaker housing may be very difficult to remove due to adhesive. If necessary, use a hairdryer to lightly heat the perimeter of the housing to loosen the adhesive.
