Acer Nitro 5 AN515-53-52FA CMOS Replacement

Written By: Alfredo Prieto
  • Comments: 2
Acer Nitro 5 AN515-53-52FA CMOS Replacement

Difficulty

Easy

Steps

9

Time Required

20 minutes

Introduction

Use this guide to replace the CMOS in the Acer Nitro 5 AN515-53-52FA laptop. Before doing this guide please make sure there is no external power connected and that nothing is on.

The CMOS battery is a separate small battery that keeps track of time regardless if things are powered on or off. A great indicator to when it needs a replacement is when the clock on your PC falls behind. When disposing the broken CMOS please dispose it by trusted source and not a false company.

  1. kX44BROs55p1yrm1

    • Before starting the replacement, make sure the laptop is turned off and unplugged.

    • Flip the laptop upside down so that the bottom is facing up.

  2. rEDUnFvbAZPvxbTQ
    rEDUnFvbAZPvxbTQ
    CVCUGGY4JYB4WaOP

    • Use the Phillips #0 screwdriver to unscrew the sixteen 9 mm screws holding the back cover in place.

  3. TYCFPSpok1hh2mau
    TYCFPSpok1hh2mau
    S4ooZlgT5HVc5bph

    • Use the opening pick to work your way around the edges to remove the bottom case carefully.

    • Do not try to put too much force on the shell off as you may damage it.

    This fails to mention that you should remove the hard drive before taking the shell off.

    ​​​ -

  4. LqvmMRKBSmyxiLsk

    • Use the Phillips #0 screwdriver to unscrew the four 9 mm screws holding the battery in place.

    You don't need to remove the bottom ones off, just the two on the top.

    ​​​ -

  5. N2J1qTVZbqEuDpcN
    N2J1qTVZbqEuDpcN
    6ufy3RTVvSlZ3jBH

    • Disconnect the battery's motherboard connector with your fingers.

  6. u5lawXplx2Tg3LmS
    u5lawXplx2Tg3LmS
    5TPSjQqNjXByqZMS

    • Lift the battery up and out of the laptop.

  7. 4cnpQSDjnV5rsdvh
    4cnpQSDjnV5rsdvh
    LTefEHwvGFGhWBMX

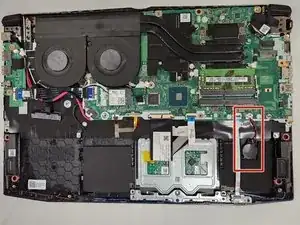

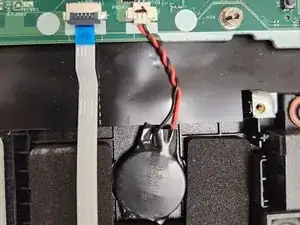

    • Locate the CMOS that is under the battery.

  8. B4yybdRMeMgQOtZU
    B4yybdRMeMgQOtZU
    RAJjvXByTiaSu4Ir

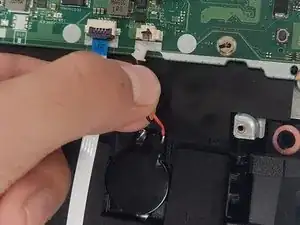

    • Gently unplug the port.

  9. R4jLJfSIyJJZMden
    R4jLJfSIyJJZMden
    PgNMSK5slAkEQmrY

    • Carefully pull the CMOS Battery, as there is adhesive keeping it attached.

Conclusion

To reassemble your device, follow these instructions in reverse order.
