Acer Nitro 5 AN515-53-52FA Battery Replacement

Written By: Alfredo Prieto
  • Comments: 5
Acer Nitro 5 AN515-53-52FA Battery Replacement

Difficulty

Moderate

Steps

6

Time Required

15 minutes

Introduction

Use this guide to replace the battery in the Acer Nitro 5 AN515-53-52FA laptop.

Before doing this guide please make sure there is no external power connected and that nothing is on. This 4-cell battery is the power supply, without it there would be no way to run the laptop. With this guide you will be able to replace the battery with a new one.

If your battery is dying at an alarming rate than normal, this is a great indication that you'll need to replace it. If there is any bulge on the battery, remove it immediately/safely and send it to a trusted disposable place.

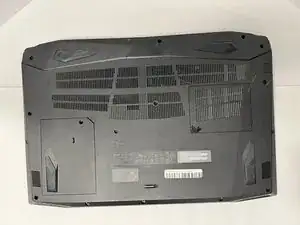

  1. kX44BROs55p1yrm1

    • Before starting the replacement, make sure the laptop is turned off and unplugged.

    • Flip the laptop upside down so that the bottom is facing up.

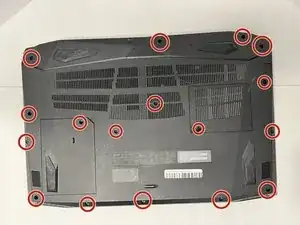

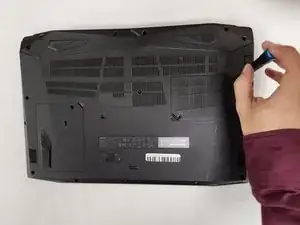

  2. rEDUnFvbAZPvxbTQ
    rEDUnFvbAZPvxbTQ
    CVCUGGY4JYB4WaOP

    • Use the Phillips #0 screwdriver to unscrew the sixteen 9 mm screws holding the back cover in place.

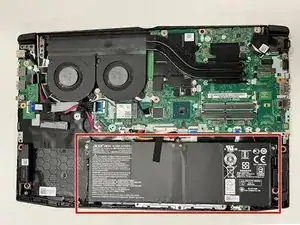

  3. TYCFPSpok1hh2mau
    TYCFPSpok1hh2mau
    S4ooZlgT5HVc5bph

    • Use the opening pick to work your way around the edges to remove the bottom case carefully.

    • Do not try to put too much force on the shell off as you may damage it.

    This fails to mention that you should remove the hard drive before taking the shell off.

    ​​​ -

  4. LqvmMRKBSmyxiLsk

    • Use the Phillips #0 screwdriver to unscrew the four 9 mm screws holding the battery in place.

    You don't need to remove the bottom ones off, just the two on the top.

    ​​​ -

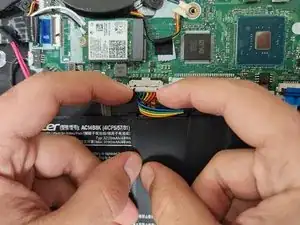

  5. N2J1qTVZbqEuDpcN
    N2J1qTVZbqEuDpcN
    6ufy3RTVvSlZ3jBH

    • Disconnect the battery's motherboard connector with your fingers.

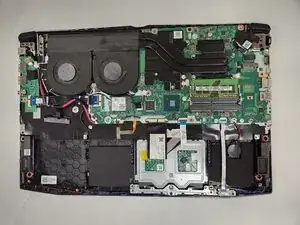

  6. u5lawXplx2Tg3LmS
    u5lawXplx2Tg3LmS
    5TPSjQqNjXByqZMS

    • Lift the battery up and out of the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
