Acer Chromebook CB315-4H-P8FZ Motherboard Replacement

Written By: CYNTHIA ANDREWS
  • Comments: 0
Acer Chromebook CB315-4H-P8FZ Motherboard Replacement

Difficulty

Moderate

Steps

5

Time Required

30 minutes

Introduction

The motherboard in the Acer Chromebook CB315-4H-P8FZ may need to be replaced if the device won’t power on, shows a blank screen, or has been physically damaged. Issues like power failure, display problems, or damage from drops or spills often point to a faulty motherboard. In these cases, replacing the motherboard is usually the only way to fix the Chromebook.

  1. QrmBcjIhbjMNgpPT

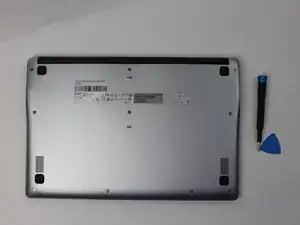

    • For your safety, unplug all peripheries, discharge the battery below 25%, and power down your device before beginning disassembly.

    • Lay the device down with the lower case facing up.

  2. nuqo1LM356v1jxU2
    nuqo1LM356v1jxU2
    isjYCIKTUTUoBwAE
    IIf2RsACvWFfoClJ

    • Remove the ten 6 mm Phillips screws that secure the lower case.

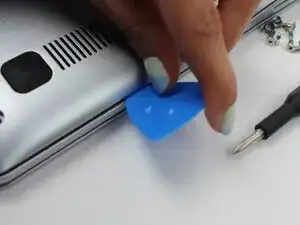

    • Insert an opening pick in the seam between the lower case and chassis.

    • Slide the opening pick around the perimeter of the device, prying every couple of centimeters, until the lower case fully releases.

    • Remove the lower case.

  3. JHQPWmEcHhSidoBA

    • Peel back the black tape over the battery connector. Use your fingernails to disconnect the battery connector from its motherboard socket.

    • Peel back the black tape over the ribbon cable to the left of the battery connector. Release the black locking tabs that secure the ribbon cable. Disconnect the ribbon cable.

    • Flip up the two black ZIF locking flaps that secure the two I/O board's motherboard ribbon cable connectors. Disconnect the two ribbon cables.

    • Flip up the black ZIF locking flap that secures the touchpad ribbon cable. Disconnect the touchpad ribbon cable.

    • Use the pointed edge of a spudger to lift and disconnect the two wireless card coaxial connectors.

    • Use your fingernails to disconnect the white speaker connector from its motherboard socket.

    • Flip up the black ZIF locking flap that secures the display cable. Disconnect the display cable.

  4. NaRSCAxDIddRRyJq
    NaRSCAxDIddRRyJq
    qKCFgmCAOXQWDjjG

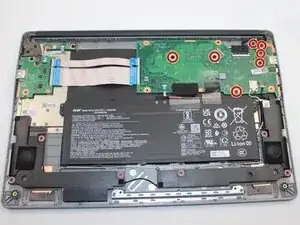

    • Use a Phillips screwdriver to remove the seven Phillips screws that secure the motherboard.

    • Lift up the right hinge.

  5. gJVYSdYWXXhYkqBI
    gJVYSdYWXXhYkqBI
    OfEmF633MX2ucEp1

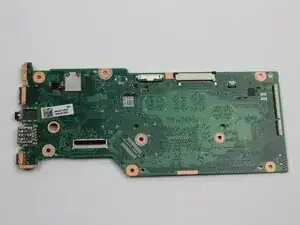

    • Grip the left edge of the motherboard and gently pull it a couple of millimeters to the left to unseat the ports from the chassis.

    • Lift the motherboard up and out of the chassis.

Conclusion

To reassemble your device, follow the above steps in reverse order.
