Acer Chromebook CB0311-1H-C1MX Motherboard Replacement

Written By: Izzy Hamann
  • Comments: 0
Acer Chromebook CB0311-1H-C1MX Motherboard Replacement

Difficulty

Moderate

Steps

17

Time Required

5 minutes

Introduction

This guide will demonstrate the process of replacing the motherboard for the Acer Chromebook CB0311-1H-C1MX. The motherboard connects all of the device’s internal components and allows them to communicate with one another. If the device is experiencing issues with memory, power, and overall functioning, replacing the motherboard might resolve these issues.

Make sure to assess all possible causes of issues regarding memory, power, and functioning before replacing the motherboard.

  1. IT6RuSYiEUCQg6wf

    • Using a JIS #1 screwdriver, remove eleven 6.6 mm screws from the back cover.

  2. Awg2WNgf5FeQrTJu

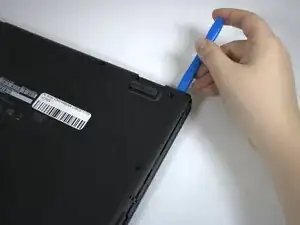

    • Beginning at the hinges, use an iFixit Opening Tool to pry open the back case.

    • Continue using the iFixit Opening Tool around the entire edge of the case.

  3. 4ckROTbSmODbi5Hn

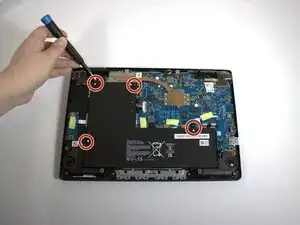

    • Using a JIS #1 screwdriver, remove all four 4.8 mm screws holding the battery in place.

  4. m3kVTBjjUOOVjGEI
    m3kVTBjjUOOVjGEI
    GhVoeDkBkOeoSPsf

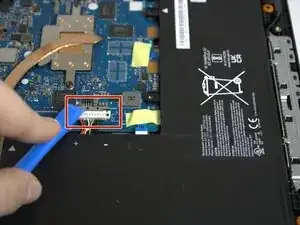

    • Gently push on either side of the silver connector so that it no longer covers the battery cable.

    • Disconnect the battery cable by pulling it straight out.

    • This component is called the Flat Topped Connector.

  5. uCUht6gvUPTbOurh
    uCUht6gvUPTbOurh
    dt1MXZGffyUpSdxP

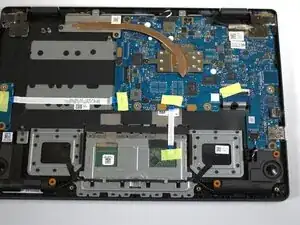

    • Lift and remove the battery from the laptop.

  6. SSkhZrNkGxYiUWUL
    SSkhZrNkGxYiUWUL
    vXpoNqfLXPFAvcPW

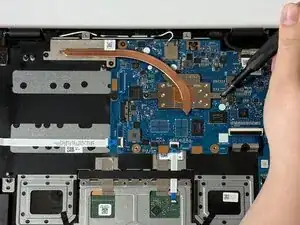

    • Remove all four 4.7 mm screws from the heat sink with the JIS #1 screwdriver.

  7. GqNlJ3ySKZOC2hZ4

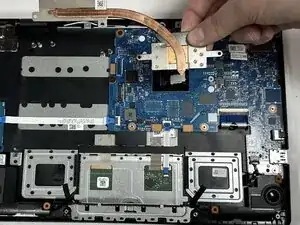

    • Remove the heatsink from the laptop.

  8. 4Tomm5ZKUXdtyZyC

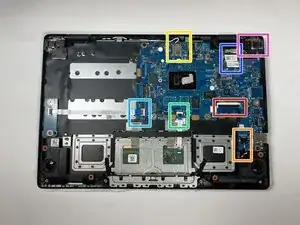

    • This step of the guide is intended only to help users locate the necessary components in the following steps. Please refer back to this step as needed.

    • This is the location of the palmrest cable detailed in Step 10 of this guide.

    • This is the location of the speaker cable detailed in Step 11.

    • This is the location of the Wi-Fi cables detailed in Step 12.

    • This is the location of the touchpad cable detailed in Step 13.

    • This is the location of the daughterboard cable detailed in Step 14.

    • This is the location of the LCD cable detailed in Step 15.

    • This is the location of the hinge detailed in Step 16.

  9. ZsbUJKkHjDnd3DAU

    • Using the JIS #1 screwdriver, unscrew all five 4.7 mm screws.

    • Two of the screws also hold down the computer’s hinge.

    • Using the JIS #000 screwdriver, unscrew the one 2.4 mm screw.

  10. Q5pOhqaS3UIex3dw
    Q5pOhqaS3UIex3dw
    XC4FLw1VLc5sErDY
    SVODQDPqHCGKUfxY

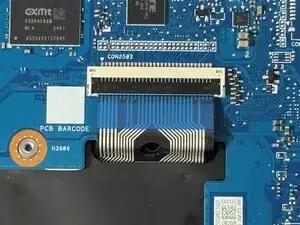

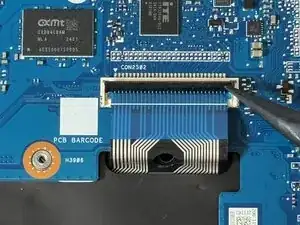

    • Lift the black tab that secures the palmrest cable in place.

    • Disconnect the palmrest cable by pulling it straight out.

    • The cable may be covered by tape.

  11. e3BVFdlB2QaZOYWN
    e3BVFdlB2QaZOYWN
    Wo4vyNxRaXCFaYjN

    • Disconnect the speaker cable by pulling it straight out.

  12. Uog1D5pNjEDUYlFp
    Uog1D5pNjEDUYlFp
    U1UFWFFH4jLecOOf

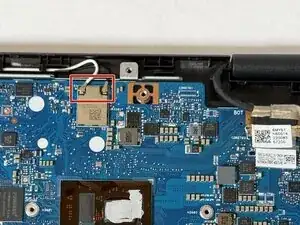

    • Disconnect the black and white Wi-Fi cables by popping them off their pegs.

    • The cables may be covered by tape.

  13. jvv6SJjIIAIe6uRW
    jvv6SJjIIAIe6uRW
    Cfu1pa6NU1whCYyi

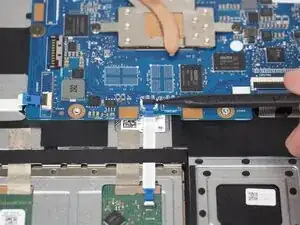

    • Lift the black tab that secures the touchpad cable in place.

    • Disconnect the touchpad cable by pulling it straight out.

    • The cable may be covered by tape.

  14. ygBV63EMCACyHehN
    ygBV63EMCACyHehN
    6fWJUX4JFgHkJYKN
    5pYlb5b2QKTtBY3a

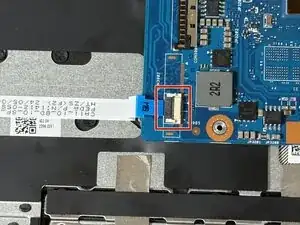

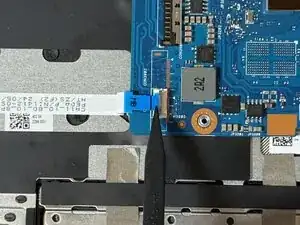

    • Lift the black tab that secures the daughterboard cable in place.

    • Disconnect the daughterboard cable by pulling it straight out.

  15. j2wkrDLJowT4qLfH
    j2wkrDLJowT4qLfH
    WoaIoEXDnSGgLtQw
    iCKEuo1HxVOEEZo2

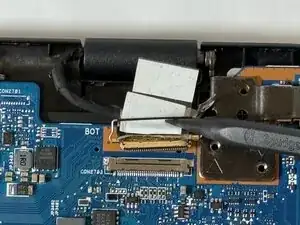

    • Lift the metal bar that secures the LCD cable in place.

    • Disconnect the LCD cable by pulling it straight out.

    • The cable may be covered by tape or stickers.

  16. AqPgrIydpNRhTuCY
    AqPgrIydpNRhTuCY
    1AYVLbDBgtCvvMwt

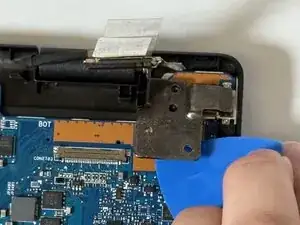

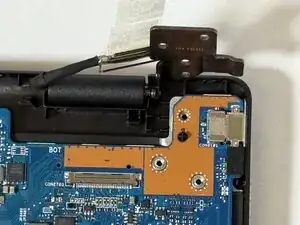

    • Using the iFixit opening pick, pry up the hinge holding the motherboard in place.

  17. G2Ioc6E5LvLlmlNA

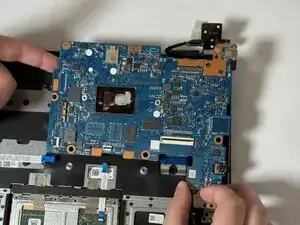

    • Gently lift out the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
