Acer Aspire 3 A315-24PT-R288 Speakers Replacement

Written By: Monique
  • Comments: 0
Acer Aspire 3 A315-24PT-R288 Speakers Replacement

Difficulty

Easy

Steps

6

Time Required

10 - 15 minutes

Introduction

If you notice any unusual sounds or distortion coming from your Acer Aspire 3 A315-24PT-R7VH speakers, then it may be time to replace them.

Check this troubleshooting guide before replacing speakers.

  1. af6TWBXQwoyGnOEy
    af6TWBXQwoyGnOEy
    oOQ6KrTjSlKiqRi3

    • For your safety, unplug all peripheries, discharge the battery below 25%, and power down your device before beginning disassembly.

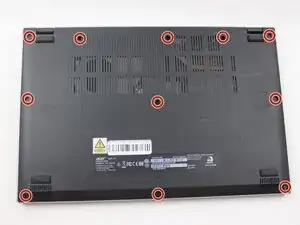

    • Use a Phillips screwdriver to remove the eleven 2 mm screws that secure the lower case.

  2. qa4OZosd5ygHyMYn

    • Insert an opening pick in the seam between the chassis and the lower case.

    • Slide the opening pick around the entire perimeter, prying every couple of centimeters, to release all of the retaining clips that secure the lower case.

    • Remove the lower case.

  3. KKWcalhbbNiYABJV

    • Remove the tape on the battery connector using tweezers or your fingers.

  4. XBkJbZJX63IKiIaO
    XBkJbZJX63IKiIaO
    ujiXrulWBYQXEaPe

    • Use an opening pick or the flat end of a spudger to gently push the battery connector out of its motherboard socket.

  5. 2uVbg1ZpniEIPJOn
    2uVbg1ZpniEIPJOn
    qNU1NAMFIHJ6SNn4
    GHOGlnwEBHDQTcXl

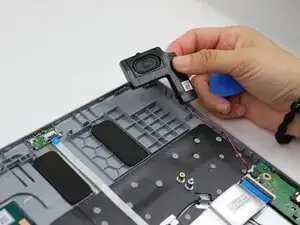

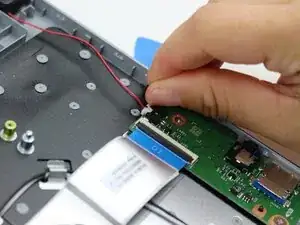

    • Use an opening pick or your fingernails to gently push each of the two speaker connectors out of their sockets.

  6. uKOCVw1f2QwX1eKR

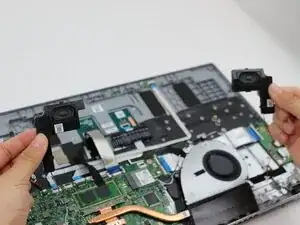

    • Lift both of the speakers up and out the chassis.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting or ask our Answers community for help.
