2020-2024 BMW X5 Key Fob Battery Replacement

Written By: Santhos Kuruparan
  • Comments: 0
2020-2024 BMW X5 Key Fob Battery Replacement

Difficulty

Easy

Steps

6

Time Required

5 minutes

Introduction

This guide shows how to replace the battery in the key fob for BMW X5 models (2020–2024). A low or depleted battery may prevent your key fob from unlocking your vehicle remotely. This guide will give you a step-by-step tutorial on performing this battery replacement without needing to go to a dealership.

When replacing the battery, ensure it's handled carefully; sometimes there can be a swollen or leaking battery. Make sure it's disposed of carefully at an e-waste recycling centre. Also, BMW key fobs are very sensitive, so ensure that they're handled carefully to prevent any damage, and apply gentle pressure when opening the case of the key fob.

  1. xVbxmXn1UF1JnNJQ
    xVbxmXn1UF1JnNJQ
    Yhpf64EYiisIZyRQ

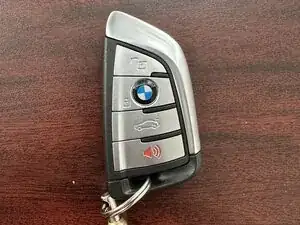

    • Check if the key is the comfort access one to be able to perform the battery replacement.

    • Ensure when you are replacing the battery that you obtain the right battery or the key will not work properly.

  2. QipPYlc6QbByvlDX
    QipPYlc6QbByvlDX

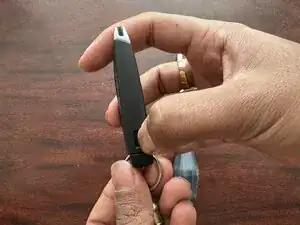

    DxqyA3WDcivXwNbY
    kLm1agBfXaKOUoFm

    • Press the small button on the side of the key.

    • Remove the physical key from the fob.

  3. Ziyj2JYHUm2TQAK1
    Ziyj2JYHUm2TQAK1
    w42o3MxCVvgT2Qpw
    LZ3OVp3Qsl43adyM

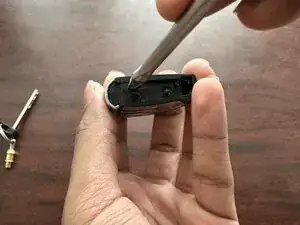

    • Insert a small flathead screwdriver into the key blade slot.

    • Gently twist to pry open the key fob cover.

    • Avoid using excessive force to prevent damage to the plastic cover.

  4. KSIVRYY6hTXeCXrC
    KSIVRYY6hTXeCXrC

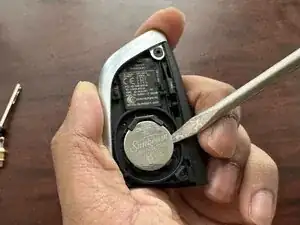

    bwQvwYNHuAckwxLU
    e2WiYYfo1cbwi1ES

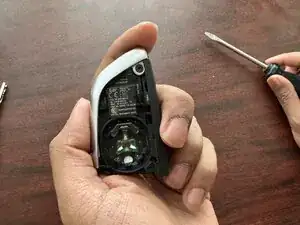

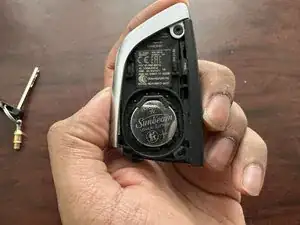

    • Carefully remove the back cover of the key fob.

    • Gently remove the old CR2032 battery.

  5. txsXiBBAhrAFffo2
    txsXiBBAhrAFffo2
    EOANqDvTenFLlc1B
    ucCZgRYrBGBhE6RC

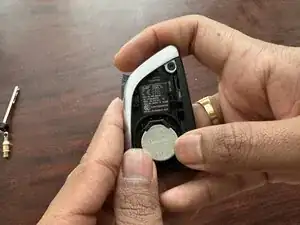

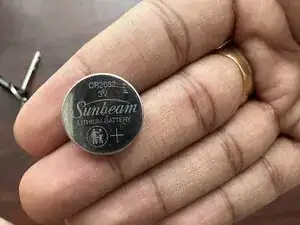

    • Insert the new CR2032 battery, positive (+) side facing upward.

    • Ensure the battery is properly aligned to guarantee functionality.

  6. oPIRVnlEBuhcZVAb
    oPIRVnlEBuhcZVAb
    r2ETNQndMuxoGXiw

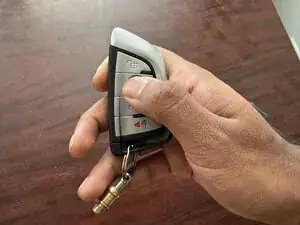

    GdK4NoYnxRWobU4p

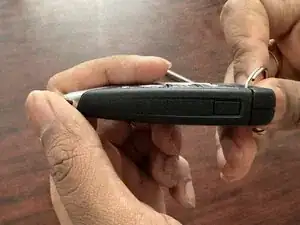

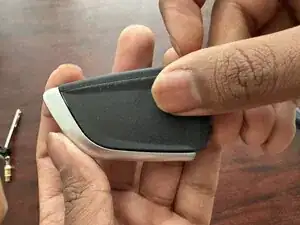

    • Reattach the back cover.

    • Press firmly until you hear it click securely into place.

    • Confirm the cover snaps securely to prevent any functionality issues.

    • Reinsert the key blade into the key fob.

    • Press until it locks securely.

    • Test out the key functions to see if everything's working, and it should be ready for use.
