2017 Chevy Malibu Cabin Air Filter Replacement

Written By: ANGEL J MARQUEZ
  • Comments: 0
2017 Chevy Malibu Cabin Air Filter Replacement

Difficulty

Easy

Steps

4

Time Required

15 - 30 minutes

Introduction

This is a simple, easy-to-follow guide for replacing the cabin air filter in a 2017 Chevrolet Malibu.

The cabin air filter traps small particles, dust, and debris that could enter your vehicle’s A/C system. It’s recommended that you replace it every 15,000 miles (24,000 kilometers). However, if you notice a musty or unpleasant smell coming from your air vents, it may be a sign that your cabin air filter is dirty and needs to be replaced sooner.

When purchasing a replacement filter, make sure you buy the correct size and type that fits the 2017 Chevy Malibu.

  1. tMs4cjMFe5pSGNrk
    tMs4cjMFe5pSGNrk
    dbpxIhvOKJUIvoGe
    jUSW1navBPFQPUgG

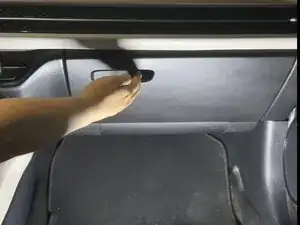

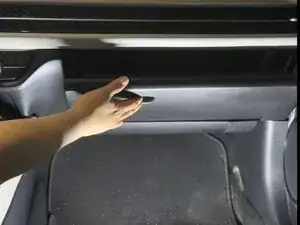

    • Pull the lever to open the glove box.

    • If the glove box is full, remove items for easier access to the cabin filter.

  2. vvRgqHBxBm4BedHg
    vvRgqHBxBm4BedHg
    XWTjECPBiQIJ45Io
    raLs1y1MHbRfJMDX

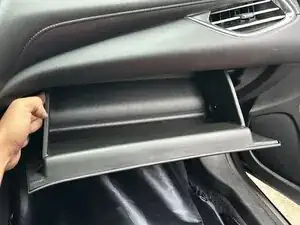

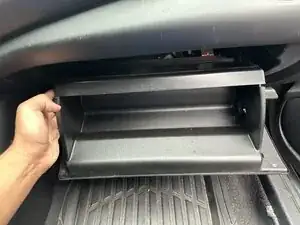

    • Press on both sides of the glove box to release it.

    • Lower the glove box to reveal the air filter compartment.

  3. tCKm5lH2WNQ6mDRa
    tCKm5lH2WNQ6mDRa
    N13wrbbFVPhqyYGE
    Y1RDN6ygsxMUpypC

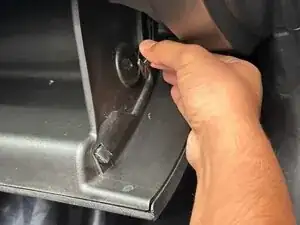

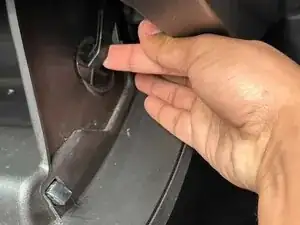

    • Push up on the damping latch and pull it out.

  4. WicuRfEFQARHhexF
    WicuRfEFQARHhexF
    XRFbK2Y34RhedJaB

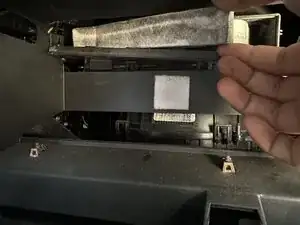

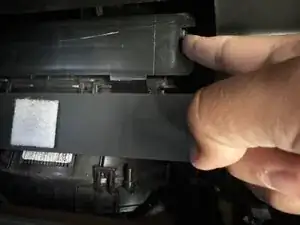

    • Unlatch both ends of the filter door and open it to reveal the old filter.

    • Pull out the old cabin filter and throw it away.

    • Insert the new filter.

    • Be sure to insert it so the airflow follows the correct direction, as indicated by the arrows on the filter.

Conclusion

To reassemble your device, follow these instructions in reverse order.
