2015-2020 Hyundai Elantra Key Fob Battery Replacement

Written By: Shawn Kimani
  • Comments: 0
2015-2020 Hyundai Elantra Key Fob Battery Replacement

Difficulty

Easy

Steps

5

Time Required

4 - 6 minutes

Introduction

Follow this guide to learn how to replace the battery in your 2020 Hyundai Elantra key fob. Over time, key fob batteries can lose charge and need replacement to ensure continued functionality.

This guide applies to the 2020 Hyundai Elantra key fob and may also work for other sixth-generation Elantra models.

  1. OFM5QjHctwN5IkgL
    OFM5QjHctwN5IkgL
    4Wewm3CBpHm6Vypw
    IT26HhJiHTpkyC5K

    • This step is crucial as you will not be able to open the case with the key inside.

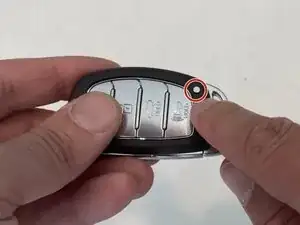

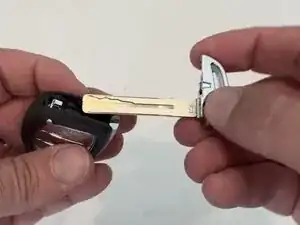

    • Press the release button and slide the emergency key out of the fob.

  2. GObXDvVmqAA4PGZm
    GObXDvVmqAA4PGZm
    gk1NTIm4EiW2ODDt
    LmWeIZ2KRrBX4XHB

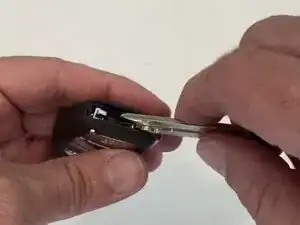

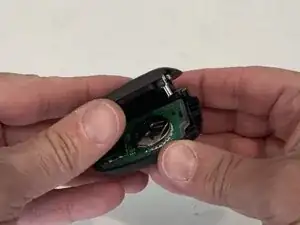

    • Insert the wide end of a spudger into the the bottom of the key fob and with a gentle twist, pry open the case.

    • Don't apply too much force or pressure to avoid damaging the key fob.

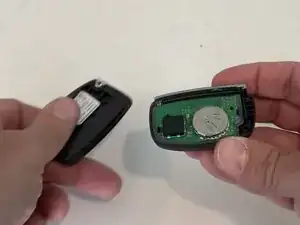

    • Once the case is open enough to get your fingers in the seam, use your hands to separate the top and bottom of the fob.

  3. A2LuYWaVtfChMbvV
    A2LuYWaVtfChMbvV
    TpjcrOpGfGjNAYYy

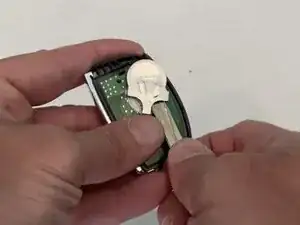

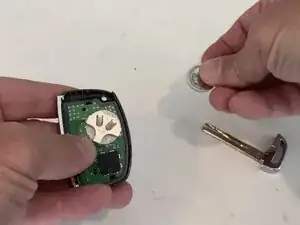

    • Use a spudger to remove the old battery from the holder.

    • Replace the CR2032 battery, ensuring the positive side ( + sign) is facing down.

    • Before you put the key fob back together, make sure the battery is seated fully and correctly.

  4. ODMyEK21d3A4Fris
    ODMyEK21d3A4Fris
    xVXjSBnwpYTOfGxS

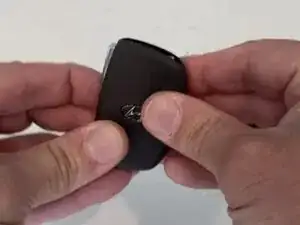

    • Align both halves of the case and press them together.

    • You should hear a snap when they connect.

  5. n4ANxygSCUdFZyia

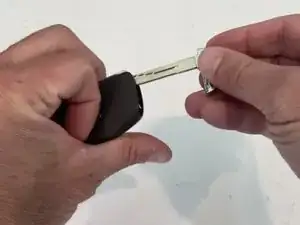

    • Slide the emergency key back into the holder until you hear a click indicating it's locked in place.

    • Give the key a test run ensuring all the buttons work and the vehicle responds accordingly. If not, ensure the battery is seated properly and try again.

Conclusion

To reassemble your device, follow these instructions in reverse order.
