2000 Porsche Boxter Headlight Bulb Replacement

Written By: JasmineG

Comments: 0

2000 Porsche Boxter Headlight Bulb Replacement

Difficulty

Moderate

Steps

Time Required

30 minutes - 1 hour

Introduction

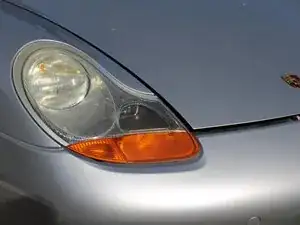

Use this guide to replace a malfunctioning or unusable headlight bulb on a 2000 Porsche Boxster.

The car’s headlight bulb is a crucial component of the lighting system, providing visibility for night driving and ensuring that other drivers can see your vehicle. Over time, bulbs can burn out, become dim, or suffer from electrical issues, necessitating replacement. Your headlight bulb may need to be replaced if it has burned out, is flickering, or appears significantly dimmer than usual. In some cases, condensation inside the headlight housing or wiring issues can also lead to malfunctioning bulbs. For this guide, you will need an Allen wrench, which is typically included with the car, but you may need to purchase one separately. You will also need a replacement bulb that is compatible with the 2000 Porsche Boxster. Our guide recommends using a H7 Standard Halogen light bulb (H7 for low beam, H1 for high beam).

Follow this guide carefully to ensure proper installation and safety during the headlight replacement process. Before beginning, make sure your car’s engine is turned off completely and parked.

Tools

Step 1

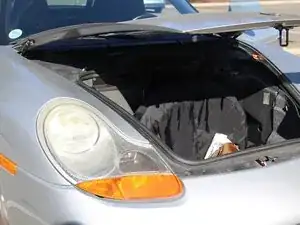

Open the front trunk (frunk) using the latch on the left side of the driver’s seat.

Step 2

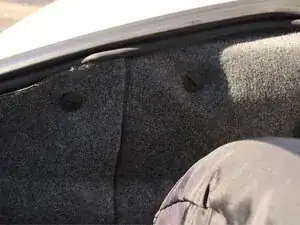

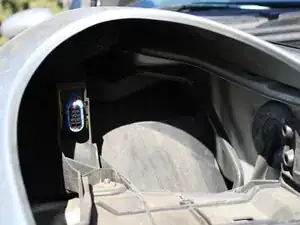

Look inside the frunk side panel on the side of the headlight you wish to replace.

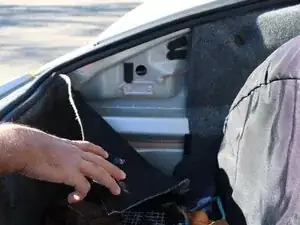

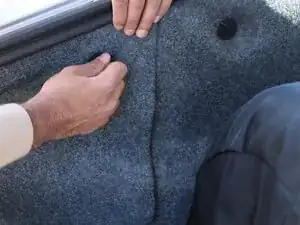

Unscrew the black clip that holds the side panel to the car, and peel it back.

Step 3

Insert the 5 mm Allen wrench into the locking mechanism, and turn it counterclockwise until you hear a “pop” sound.

Step 4

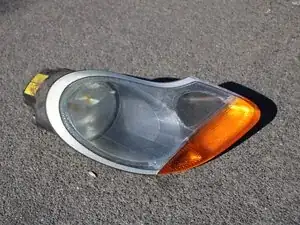

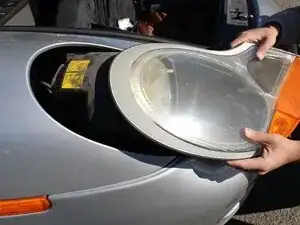

The headlight will be loose now.

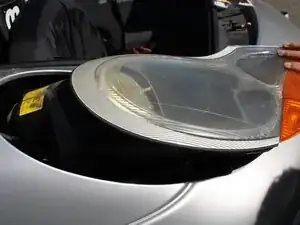

Carefully slide the headlight forward out of the car.

Step 5

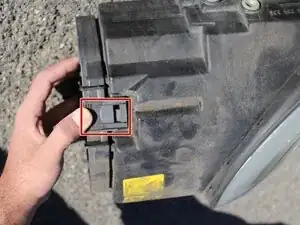

Remove the plastic cover from the back of the headlight, by pressing the clip that reads PUSH.
Pull off and remove the cover, placing it aside.

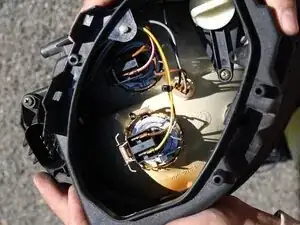

You will see two wire plugs after removing the cover.

Step 6

Carefully disconnect the wire plug where you wish to replace the bulb.
If necessary, gently wiggle it side-to-side while pulling.

Step 7

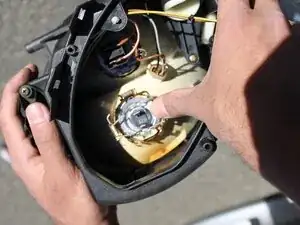

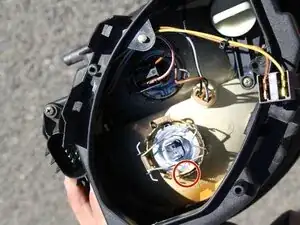

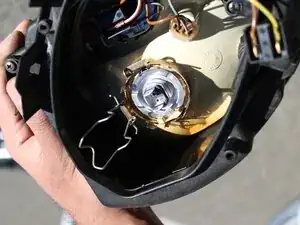

The old bulb is secured with a metal clip.
Carefully press the retaining spring clip and release it.
Once the clip is released, lift it up completely to fully open it, leaving the bulb loose.

Step 8

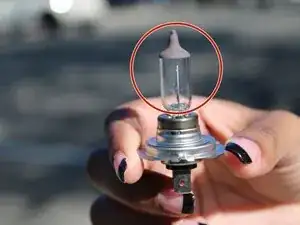

Avoid touching the glass of the new bulb with bare fingers—oil from your skin can shorten its lifespan.

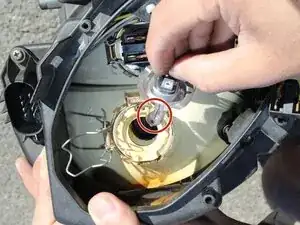

Gently pull the old bulb out, and insert the new H7 or H1 bulb, with the bulb side facing towards the entrypoint.

Step 9

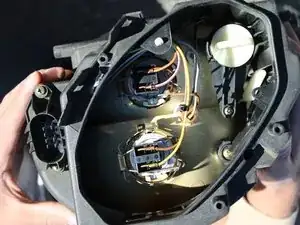

Ensure the wiring is restored to its original layout; otherwise the bulb will not illuminate.

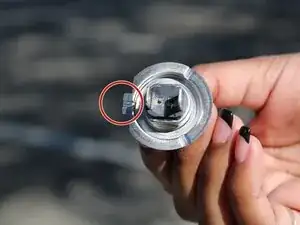

Make sure the metal notch of the bulb is aligned properly with the bulb housing.
Secure the retaining clip back in place.
Reconnect the wiring plug back in.

Step 10

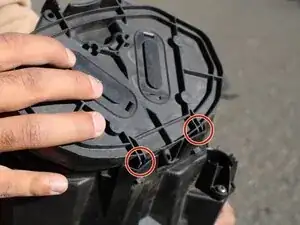

Reattach the plastic cover back in place by alligning its attachment points, then gently press it into place.
Secure by pressing down the PUSH button to ensure it clicks, and preventing the cover from detaching.

Step 11

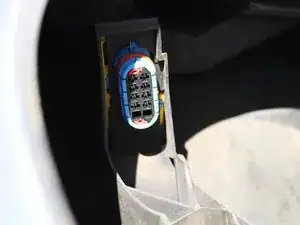

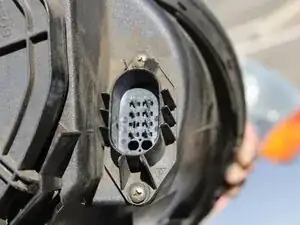

Line up the headlight connector and the car slot before sliding the headlight in.

Step 12

If the headlight doesn’t align properly, remove and reset it before locking in place.

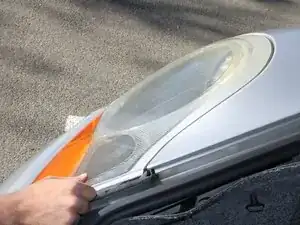

Carefully slide the headlight back into its slot.
Use the 5mm Allen wrench and turn the locking mechanism clockwise to lock the headlight back in place.
You should hear a “pop” once it is secured.
