Battery
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Background
The LG CG180 is a phone manufactured by LG. It was released in 2007 and has since been discontinue. It features text messaging, voice memo recording, speakerphone, and MEdia Net for AT&T customers. The phone has a compact design with dimensions 3.91” (H) x 1.77” (W) x 0.58” (D). It has a 750 mAh Li-Ion that is advertised to last for up to 3 hours of talk time and up to 10 hours of standby time.
Identification

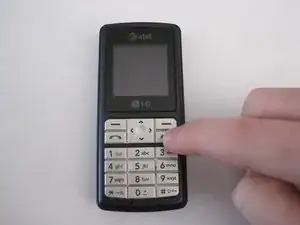

Verify AT&T logo at the top of the display and LG logo at the bottom of the display. You can identify your phone by the model and serial number under the battery. The model number CG180 is also in the lower right corner on a white product tag.
Specifications
General Information
- Product type: Cellular phone
- Service Provider: AT&T
- Width: 1.8"
- Height: 3.9"
- Depth: 0.6"
- Weight: 2.4oz
- Technology: GSM 850/1900 (Dual band)
- Antenna: Internal
Display
- Type: LCD display
- Resolution: 128 x 128 pixels
- Diagonal: 1.5"
- Color Depth: 16-bit (65000 colors)
Battery
- Technology: Lithium ion, 750 mAh
- Talk Time: Up to 180 minutes
- Standby Time: Up to 250 hours
Additional Features
Vibrating alert, polyphonic ringer, conference calling, call timer, caller ID, speakerphone, voice recorder, SMS, internet browser, calendar, alarm clock, stopwatch
