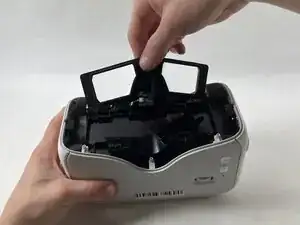

Lenses
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Background
The DJI Goggles were released by DJI in April 2017. They are the first of DJI's FPV (First Person View) goggles designed to be able to see what your drone sees in the first person.
Identification
To verify your goggles are the correct model in discussion, you need to locate the model number. This can be found on the section of the headband that connects to your goggles. In the top right corner you should see "Model: G1S", and below that can be found all additional information relating to your goggles.
Technical Specifications
Weight:
Goggles: 495 g
Headband: 500 g
Dimensions:
Goggles: 195×155×110 mm
Headband(Folded): 255×205×92 mm
FOV:
85° (single screen)
Screen Size:
5 inch×2
Interpupillary Distance Range:
58 – 70 mm
Refresh rate:
60 Hz
Screen Resolution:
3840×1080 (single screen: 1920×1080)
Operating Frequency:
2.4 GHz
Max Transmission Distance:
Same as the aircraft connected
Video Downlink Resolution:
1080p 30, 720p 60, 720p 30
Video Downlink Latency (Near field and free of interference):
110 ms (Mavic Pro, 720p60, video format: 720p120)
150 ms (Phantom 4 Pro/Advanced series, 720p60, video format: 720p60/720p120)
167 ms (Phantom 4, 720p30, video format: 720p60)
140 ms (Inspire 2+X5S, 720p60, video format: 1080p120)
190 ms (Inspire 2+X4S, 720p60, video format: 1080p60)
Battery Capacity:
9440 mAh
Battery Energy:
35.44 Wh
Max Operating Time:
6 hrs
Operating Temperature Range:
32°F (0°C) - 104°F (40°C)
I/O Interface:
Micro USB, 3.5mm audio jack,
HDMI type-D, Micro SD card slot
HDMI Supported:
HDMI 1.4b, HDCP 1.4
Sensors:
Gyroscope, Accelerometer, Proximity sensor
Charger:
Input: 100-240VAC, 50/60 Hz. 0.5A
Output: 5V,3A ; 9V,2A；12V,1.5A
