Introduction

This is a teardown of an Ipod Touch 3rd Generation to take it apart and see it's different components.

  1. HPTvHFMSuLLUUZne
    • You will need:

    • 1x PH00

    • 1X Splicer

    • 2X Plastic Opening Tools

    • 1X Suction Cup

  2. e5CHMOwBPYIVXkgZ
    • Use the Plastic Opening tools around the screen in order to pry it open.

  3. gDAuYOmQqUsg1tMH
    • Next use the suction cup to lift the screen.

  4. dKLCuGfrrksAZifJ
    • You can then remove the suction cup from the screen.

    • After that move the screen to the side.

  5. p2WyMLIgRUO3LuNh
    • Now you can lift the LCD Screen and start to remove the screws with the PH00.

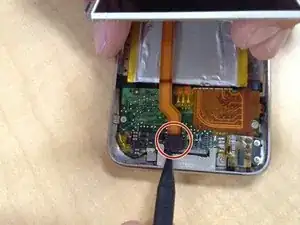

  6. jgy12XadLkNuLRoZ
    • Once you do that you have to separate the black square from the rest so you can fully remove the LCD Screen.

  7. UONyKb6GIfraZUH4
    • After that you can set the LCD Screen to the side.

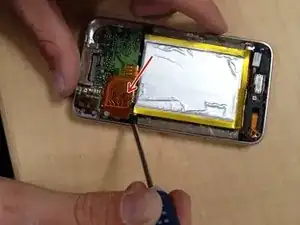

  8. RlK3K6YHGhFZIpo6
    • After, use the PH00 to remove more screws.

    • Then use the splicer to start removing the orange square shown.

  9. 2yUXkpRECa12Et4P
    • Once you do that, you can remove the battery and ribbon cable and set it aside.

    • You are now down with the teardown. If you want to put it back together again just follow the same steps backwards.

    • This is at a moderate level, definitely not something you should try without a guide.

  10. QpWhWDi1BtdyKYVt
    • In conclusion, the teardown went well and we managed to understand most of the components in the device.
