Introduction

The Backbone One sneaks into the mobile gaming market with a handful of interesting features, including a passthrough Lightning port, headphone jack (novel!), and some dedicated controls, like gameplay recording and instant muting. But is this compact iPhone controller as repairable as it is tactile? Let’s take a closer peek.

For more exciting teardowns and repair news, be sure to follow us on Instagram,  Twitter, and Facebook. And for iFixit goodness delivered straight to your inbox, subscribe to our newsletter.

  1. LWNL5tvLjUJcPvNR
    LWNL5tvLjUJcPvNR
    Qf62THBKjbL1EJua
    D25C66LBnkYVXhiD

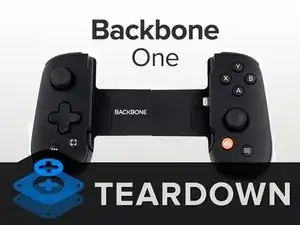

    • This Joy Con-esque controller may look like any other mobile gamepad—but on paper at least, it packs a few surprises. Let's unfurl a few of them here:

    • D-pad and thumbstick on the left. A-B-X-Y buttons and thumbstick on the right. Shoulder and trigger buttons on each side.

    • Lightning port for passthrough charging and connecting accessories.

    • 3.5 mm headphone jack—a welcome sight here, after being dropped from the iPhone in 2016 and never seen again (well, almost never). Welcome back, little buddy!

    • Specialty buttons for instant muting, launching the Backbone app, and recording gameplay.

    • A couple interesting things missing: Bluetooth and an internal battery. The Backbone One connects to—and draws power from—your iPhone directly.

    • We can't decide if having no battery and no Bluetooth is a feature—but it seemingly reduces the number of things to go wrong.

  2. KvRFTMKiXA6KnhEo
    KvRFTMKiXA6KnhEo
    AekCGyNdXFkV4mTA
    wAPUiXeEC6PCp1Rh
    • The Backbone One doesn't collapse as neatly or completely as the otherwise-bulky Razer Kishi. During playtime however, its fully extended form is pretty svelte.

    • If your phone's case adds significant volume, you might need to remove it for a nice snug fit inside the Backbone One. That's what makes you a true gamer, right?

    • Since most humans lack a third arm, be careful when plugging and unplugging your phone from the built-in Lightning port to avoid any accidental damage.

  3. gSKQdlO3TKwjSETE
    gSKQdlO3TKwjSETE
    RLLfyCKmrnO3PAvi
    DDZLPhA1BwAcCJZr
    • Enough talk—let the games begin!

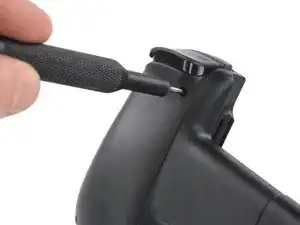

    • We're off to a fast start thanks to some external Phillips screws on the right grip. We'd like to take this opportunity to thank Backbone for having the spine not to glue this thing together. Huzzah!

    • Beneath the plastic outer shell, some colorful cables—and our first look at the Backbone One's internals.

    • We free the interconnect cable from its ZIF connector claw and unplug the two Lightning connector cables from the motherboard.

    • A few more Phillips screws later, we can extract the shoulder button, trigger, and our first PCB.

  4. rZbDnuIFHhZBqpHk
    rZbDnuIFHhZBqpHk
    GqWo3nF32UyBeBdD
    oZjKcK1HCUUCmpGa

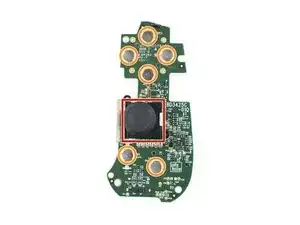

    • Let's see what this board brings to the game:

    • The joystick—soldered to the board (not a great start, if we've learned anything from Nintendo)

    • Six clickable contacts (tactile dome) for the A-B-X-Y buttons + orange Backbone App button + an option button

    • Skyworks SKY52101-11 IoT SoC (likely)

    • Avnera AV3425C single chip analog SoC for smart Lightning headsets

    • A soldered-on bumper button

    • A soldered-on Hall-effect sensor (Texas Instruments DRV5053) for the trigger button

    • A soldered-on Lightning port to pass through power to your phone, or sound to your headset

    ボタンが硬いので、何とかしたいのですが、いい方法ありませんか?

    三浦俊 -

  5. R5eEGYENTVMgMK5J
    R5eEGYENTVMgMK5J
    GQDwU1uZmeTHYZLf
    vUu3q1nrlqvmCmLh
    • Over on the left side we find an almost identical setup—right down to the Phillips screws and ZIF connector.

    • But we're momentarily stumped trying to remove the trigger button. Turns out, it's secured by just one well-hidden screw.

    • See the angle on that driver? If it looks wrong, that's because this isn't how screws are supposed to work. We're actually slightly surprised when it twists out safely and the trigger plonks onto the table.

    I found that popping the trigger off first helps getting to that screw underneath it. the trigger is held in place by a tab underneath it that keeps it from resetting to far when you release it as well as two knobs on either side that it pivots on when being pressed. hopefully iFixit can update their teardown to include that step and maybe even word it better.

    Paul Kinser -

    how did you pop it off? on my gen2, the two hinges seem to be where its attached and i see no way to take it off. i tried pulling gently, with no luck. i dont want to break it, so im not going to just tug till it comes off

    J Dex -

    where can I buy a right trigger replacement?

    Ricardo Gazo Rosario -

  6. OLxNxv5VqNqFkjVK
    OLxNxv5VqNqFkjVK
    1uyHkQIEm6JOVWKe
    rXjKDxGwwWfLBmuM

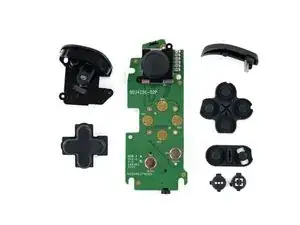

    • Now let's see what the left board has to offer:

    • Another soldered joystick (like the Razer Kishi)

    • Four gold contacts for the direction pad and four holes to keep its silicone cover in place

    • Two clickable silver contacts (tactile dome) for the screenshot/record and option buttons

    • A soldered 3.5 mm headphone jack

    • A soldered bumper button

    • A soldered Hall sensor (Texas Instruments DRV5053) for the trigger button

    Hey there, Thanks for the detailed teardown, my pet bite off my analog stick, any idea if it’s possible to change the top plastic stick coming out of the component?

    Aleksandar Manev -

    where can I buy a right trigger replacement?

    Ricardo Gazo Rosario -

  7. Next let's look for the backbone of this Backbone. It's in this area here, near the word "Backbone."
    • Next let's look for the backbone of this Backbone. It's in this area here, near the word "Backbone."

    • The sliding clamp mechanism uses a pair of flat spiral springs that unroll when you pull the handles apart. This provides more consistent compression and a tighter grip than the Razer Kishi, which uses helical extension springs to embrace your smartphone.

    • Flat springs (AKA constant-force springs) can also be found in seatbelts and tape measures.

  8. ZAhPBXBwjGyHGFSb
    ZAhPBXBwjGyHGFSb
    DoPhAsaRcHmsSGJ5
    VXuUN2GRuGeYeoBy
    • Two screws secure the Lightning port, making this high-wear part easy to replace if it breaks.

    • With the right tools, some case modding action, and re-wiring one might even be able to swap it out for a slightly wider USB-C port to make it Android-compatible.

    • The interconnect cable wiggles in the casing but can't be removed without causing irreparable damage, so we leave it alone for now.

    • We free the springs with our Minnow portable bit set and save the game before the final boss layout.

  9. NPnWlBP3QMGMqRZY

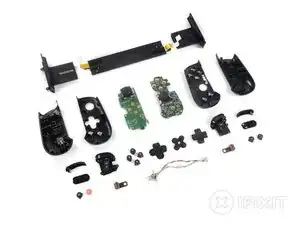

    • Game over! We have beaten the Backbone One. Let's see if we reached a high (repairability) score:

    My son has broken the lightening connector on the Backbone. Would happen to have a link where a new connector can be purchased. Thanks!

    rakesh.loi -

    I am sorry but we haven’t found a source for backbone replacement parts, yet. Maybe backbone might be able to help you (unlikely but trying won’t hurt).

    Tobias Isakeit -

    Greetings I have a problem with my Backbone the left side is not working I proceeded to open it and it turns out that that cable is loose I would like to know if these Backbone controls have any fix

    J Albino -

    Hi, can you give some explanations about how separating the middle part ? Also, is it possible to replace the interconnect cable ?
    Before buying it, I'm trying to know if it's possible to tweak it a bit to fit a 8 inch tablet / ipad mini in it.

    Thanks for the great work !

    Antoine -

  10. WW4KXCLeT12bodIN
    • The Backbone One earns a 5 out of 10 on our repairability scale (10 is the easiest to repair):

    • Using fairly common tools, disassembly is straight-forward with components held in place only with screws.

    • The Lightning connector can be easily replaced by removing the cover and two screws.

    • Though no adhesive is used, some screws seem unnecessarily difficult to reach.

    • Shoulder buttons are soldered onto their respective boards, requiring micro-soldering skills for replacement.

    • Both joysticks are soldered directly onto the boards, as is the pass-through Lightning port.
