iPod Touch 2nd Generation Headphone Jack Replacement

Wedge the PX 3688 plastic opening tool between the glass front panel and the plastic frame. Start near the top where the volume control buttons are located and stay on one side of iPod.

Turn the tool in a hinge-like rotation away from the iPod and pry the glass panel out of its case.

Be careful to work at a slow and gentle pace. Avoid breaking anything inside the iPod, especially the screen.

Work your way around the iPod, prying the front panel up, until it is completely separated from the clips.

Lift the front panel out of the bottom case.

Using the PX 3688, pry the touch screen cable connector off the top logic board.

Check the front panel for any damage. Be careful not to scratch the front panel on the underside of the black portions.

Clean the face of the display and the inner face of the front panel.

Remove the Phillips screw in the top left corner attaching the metal tray to the rear panel.

Insert a PX 3688 plastic opening tool with the edge angled up, toward the underside of the display, between the white plastic backlight and the metal beneath it.

Pry the lower edge of the display up until it's at about a 45 degree angle with the rest of the iPod.

Hold the display in this position with one hand for the next step to avoid damaging the display ribbon cable.

Remove the seven Phillips screws securing the metal display tray to the rear panel with a Phillips #00 screwdriver.

Place the display back in the metal display tray.

Use a PX 3688 plastic opening tool to peel the copper tape off the top edge of the display.

Lift the bottom of the display and rotate it towards the top edge of the iPod.

Use the spudger tool to lift the metal display tray and rotate it toward the top edge of the iPod on top of the display.

Use a spudger tool to pry the display cable connector off its socket on the logic board.

Lift the metal tray slightly (the battery is attached to the underside) and remove the display from the iPod.

Rotate the metal display tray to the top of the iPod, being careful of the ribbon connecting the battery to the logic board.

Use the flat end of a spudger to pry the battery off of the metal display tray.

Remove the metal display tray.

Place the battery back in the rear panel.

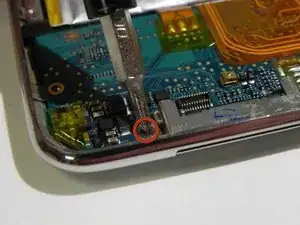

Unscrew the Phillips screw in the lower left side of the iPod Touch.

Remove the screw and the gold pressure contact piece.

Unscrew the following Phillips screws in the bottom right corner that hold the logic board to the rear panel:

One 1.9 millimeter screw.

Two 2.3 millimeter screws.

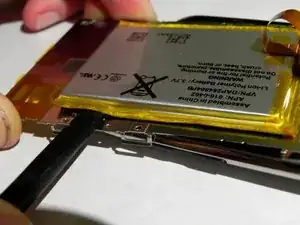

Insert the spudger beneath the battery and gently lift the battery towards you.

Grab the battery with your hand and gently lift it until it's at about a 45 degree angle with the rest of the iPod.

Using the spudger, flip the control button that holds down the ribbon.

Once the switch is flipped, remove the ribbon from its socket by gently pulling the ribbon straight out with tweezers.

In the top left corner, peel back the protective rubber grommet.

Unscrew the Phillips screw underneath.

Remove the remaining two Phillips screws in the top right corner and the top center.

Use the flat edge of a spudger and remove the large black adhesive piece from the metal rear plate.

Gently pull the top part of the Logic Board up from the rear panel with your hands.

Gently lift out the lower part of the logic Board, paying close attention to any caught edges.

The headphone jack is attached to the logic board at five points.

Remove the old headphone jack from the logic board by prying the headphone jack ribbon off the logic board with the spudger.

Solder the new headphone jack onto the logic board, making sure to solder all five points.
