iPhone 6 Plus Speaker Replacement

Written By: Walter Galan
  • Comments: 0
iPhone 6 Plus Speaker Replacement

Difficulty

Moderate

Steps

4

Time Required

No estimate

Introduction

Prereq only, battery and logic board removed.

  1. jiKQxHVdeU1CrntF
    jiKQxHVdeU1CrntF
    bn45IcCyaK6SmaYj

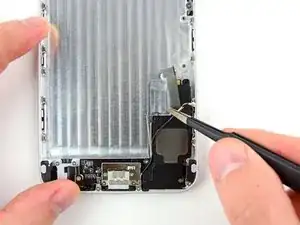

    • Grasp the antenna connector with a pair of tweezers and carefully begin de-routing it from its channel on the speaker.

  2. F3xkZylTCLpbTNRI

    • To fully de-route the antenna connector, you may need to gently pull back the metal clip securing it to the speaker assembly.

  3. d1GnUYOtmXICiMmW

    • Remove the following screws securing the speaker to the rear case:

    • One 2.3 mm Phillips #00 screw

    • One 2.8 mm Phillips #00 screw

  4. AXMwWfVTnZIkGTTj

    • Lift and remove the speaker out of the iPhone.

Conclusion

To reassemble your device, follow these instructions in reverse order.
