iPhone 6 Plus Power Button Cable Replacement

Written By: Walter Galan
  • Comments: 0
iPhone 6 Plus Power Button Cable Replacement

Difficulty

Moderate

Steps

7

Time Required

No estimate

Introduction

Prereq only for removing power button.

  1. YghqDRjElHSSRX24
    YghqDRjElHSSRX24
    X5MDEITHYFlvTYGW

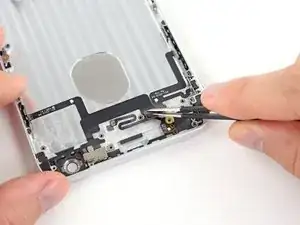

    • Use a pair of tweezers to peel the single adhesive tab that resides on top of both the power button and audio control/rocker switch cable connectors.

  2. iv23TJEvBJTlIlWt

    • Remove the single 1.3 mm Phillips #00 screw securing the power button cable bracket to the rear case.

  3. cNl4pPJCKRiPBYdY

    • Carefully grasp the bracket with a pair of tweezers and remove it from the iPhone.

  4. MRPIeCpQLL2N4tqp

    • Remove the following screws securing the power button cable bracket to the inner edge of the rear case:

    • One 2.1 mm Phillips #00 screw

    • One 1.7 mm Phillips #00 screw

  5. 6EANQBCXA2SLYb2e

    • Grasp the metal bracket covering the power button switch with a pair of tweezers and remove it from the iPhone.

  6. 2mFeXXbnTQK5PnL3

    • Remove the single 2.1 mm Phillips #00 screw securing the power button switch to the rear case.

  7. fBmXBunFpTaZlyHw

    • Pull the power button switch out of its recess on the rear case with a pair of tweezers.

Conclusion

To reassemble your device, follow these instructions in reverse order.
